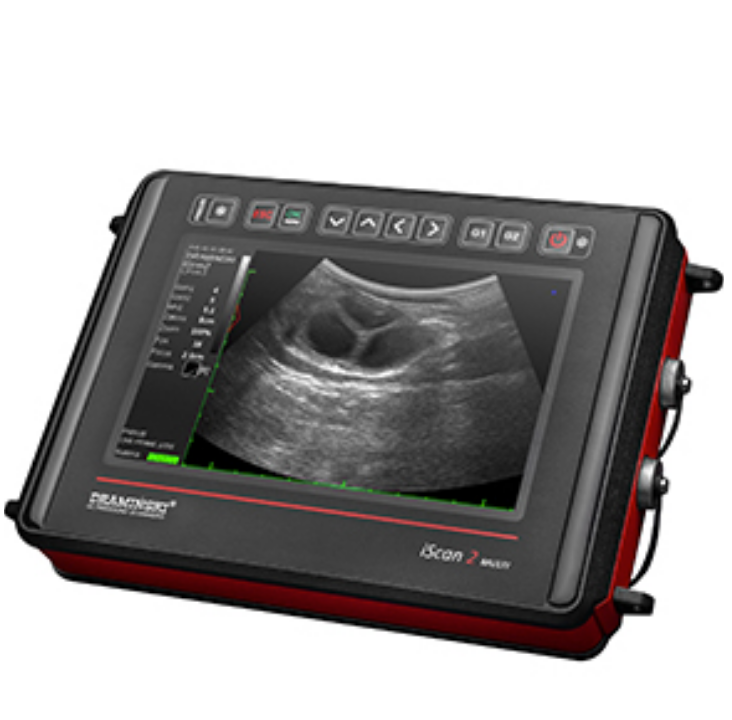

DRAMINSKI iScan2 MULTI Ultrasound Scanner (w/o probes)

Dimensions: 255.6x165x69.15mm

Weight of the device (scanner and the battery): 2060g

Image refreshing: up to 28 FPS

Greyscale: 256 shades

Gamma: 10 settings

Image projection: B Mode, B+B Mode, B+M Mode

Saving data to the memory: image with measurements, cine loop (256 frames)

Memory: 200 images, 200 cine loops

Data export: Yes, to an external storage device

File format: BMP, AVI

Quick access menu: Yes, customized

Presets: Reproductive tract, Pregnancy, Sex of foetus, Late pregnancy. One’s own preset can be set.

LuciD noise reduction and contrast improvement): Yes

Probes:

ABDOMINAL:

• Convex 3.5 MHz R60

• Convex 5MHz R50

• Linear 10MHz L40

• Microconvex 6.5MHz R15

• Microconvex 6.5 MHz R11

RECTAL:

• Linear rectal 7MHz L60

• Convex rectal 5MHz R60

• Microconvex rectal 5MHz R20

SPECIALIZED:

• OPU 6.5 MHz R11

• Linear Backfat 3.7 MHz L150

• Linear Backfat 3.7 MHz L180

• Micrconvex endocavitary 6.5MHz R10

• Linear endocavitary 7.5 MHz L40

Probe recognition: Automatic

Probes: interchangeable, electronic, broadband

Screen: 7.0’’ diagonal

Controls: membrane, water-proof keyboard

Power supply: Li-Ion 14.4V, 6.8Ah

When the battery is fully charged: up to 7 hours

Charging of the battery pack: 4 hours

Battery charge indicator: Automatic-graphic indicator

Dust and water resistance: IP32. Protection against item larger than 2.5 mm, protection against water dripping at the maximum of 15°.

Operating temperature: -15°C~45°C

Recommended storage temperature: 0°C~45°C

Optional accessories: Goggles, screen sun shield, linear rectal probe extension for cattle, linear rectal probe extension for sheep, battery support, gel stand-off
