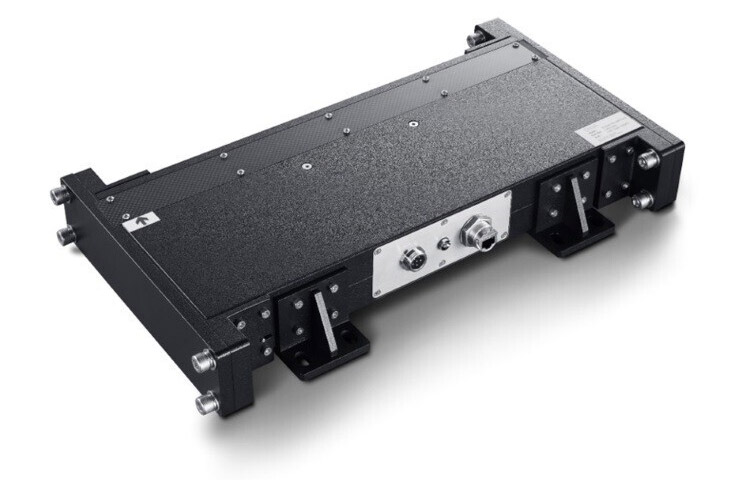

DT Detection Technology X-Scan M01B Modular linear detector arrays (410 mm / 614 mm / 820mm)

X-ray tube voltage range : 450 kVp-9 MeV

Active area length options per module : 410 mm / 614 mm / 820mm

Pixel pitch (spacing) : 0.2mm and 0.4 mm

Scintillator material : Segmented CdWO4

Scintillator thickness : 10 mm

Pixel height (scintillator) : 1.57 mm

Pixel width (scintillator) : 0.1 mm / 0.2 mm

Maximum scanning speed : 200 cm/s

Minimum integration time per line : 0.2 ms

Maximum integration time per line : 128 ms, 32 s with summing

A/D resolution : 16 bits

Dynamic range at lowest sensitivity : > 16000:1

Sensitivity settings : 8 levels, Charge range 0.75 to 10.5 pC/Line

Data digital interface : 16 bits

Interface : Gigabit Ethernet with UDP protocol

Linearity : > 99 %

Operational voltage : +10.8 V DC… +26 V DC

Power consumption : 40 W Max/module

Operational temperature : 0–40°C

Operational humidity : 30–80%

Storage temperature:  -10–+50°C

On-board calibration : Yes

Pixel discontinuity correction:  Yes

Bad pixel correction:  Yes

Pixel Binning : Yes, up to 4x (equalling to 1.6mm pitch)

Line averaging and summing : Yes, up to 256x

Power on time recording : Up to 100,000 hours recording

EMC compliance : Yes

RoHS compliance : Yes

IP classification : IP50
