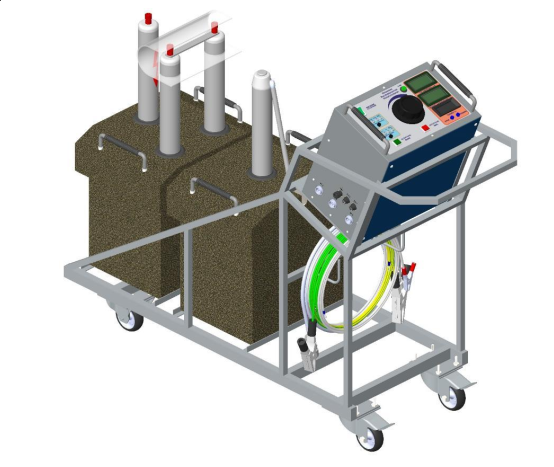

DTE DTE-40 VLF Very low frequency testing device (40KV)

1. AC supply voltage: 220V

2. Max current consumption A, max: 5

3. Ambient temp. : -10 ~45 degree celcius

4. Storage temp.: -20 ~ 45 degree Celcius

Output voltage:

Max output voltage in VLF mode: 40Kv

Three fixed frequencies of the VLF generator output (Hz): 0.1, 0.05,0.02

Max voltage in DC voltage output mode +,- (kV): 40

Max voltage in AC voltage mode 50Hz (kV): 50

Package:

1 control unit

1 High voltage unit BVN-50

1 Switching unit BK-40

1 Transport cart

1 Power supply cable

2 High voltage cable

4 Grounding cable

1 Interconnection cable

2 Fuse 5x20

2 Fuse 6x30

1 User manual
