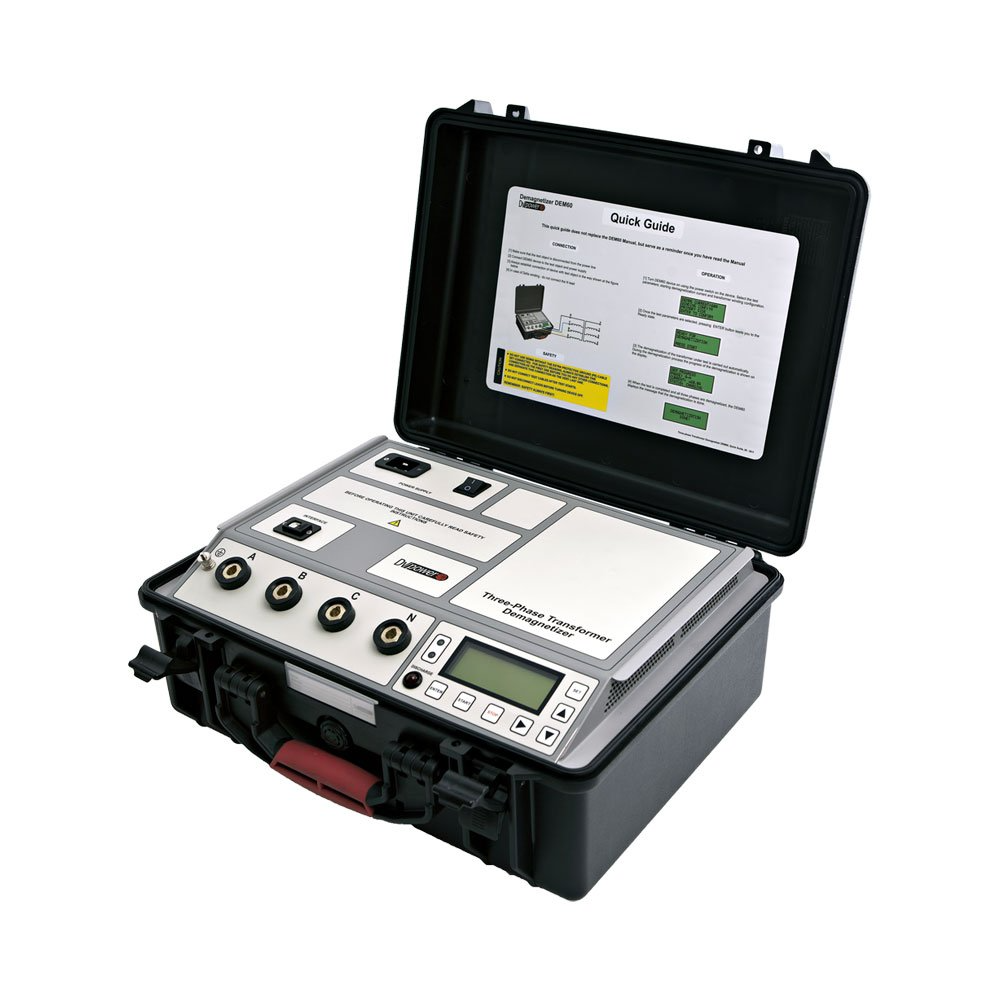

DV Power DEM60R Three-Phase Transformer Demagnetizer

Mains Power Supply

• Connection: according to IEC/EN60320-1; UL498, CSA 22.2

• Mains supply: 90 – 264 V AC

• Frequency: 50/60 Hz

• Input power: 2250 VA

Output Data

• Test current 5 mA – 60 A D

Display

• LCD screen 20 characters by 4 lines

• LCD display with backlight, visible in bright sunlight

Interface

• USB (standard)

• RS232 (optional)

Dimensions and Weight

• Dimensions (W x H x D): 480 x 190 x 385 mm/ 18.9 x 7.48 x 15.16 in

• Weight: 13.1 kg / 28.8 lbs

Environmental Conditions

• Operating temperature: -20 ºC – + 55 ºC / -4 ºF – +131 ºF

• Storage & transportation: -40 ºC – + 70ºC / -40 ºF – +158 ºF

• Humidity: 0 % – 95 % relative humidity, non-condensing

Included accessories:

Windows-based DV-TR PC software

USB cable

Ground (PE) cable

Mains power cable

Plastic transport case – medium size

Brochure
