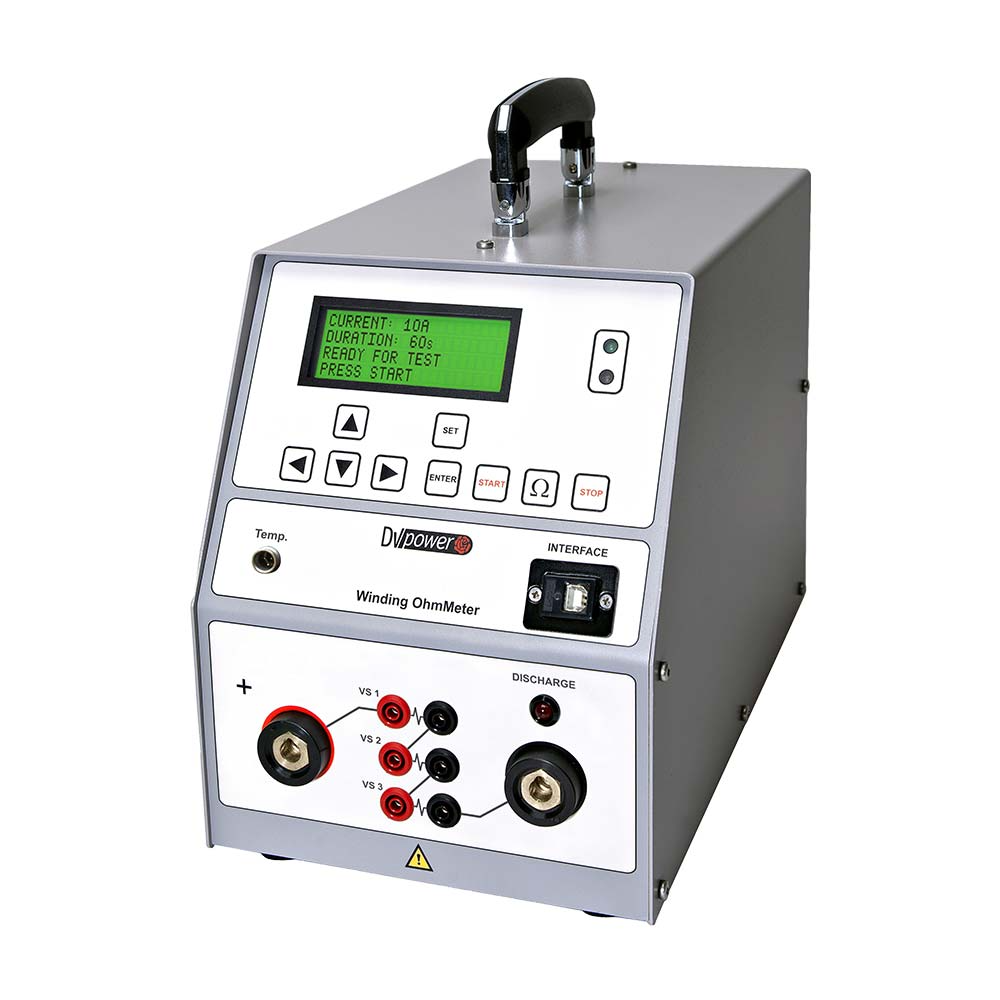

DV Power RMO100M Motor & Generator Winding Ohmmeters

Test currents: 5 mA – 100 A DC

Measurement range: 0.1 μΩ - 1 kΩ

Typical accuracy: ± (0.1% rdg + 0.1% F.S.)

Range / Resolution

• 0.1 μΩ – 999.9 μΩ/ 0.1 μΩ

• 1.000 mΩ – 9.999 mΩ/ 1 μΩ

• 10.00 mΩ – 99.99 mΩ/ 10 μΩ

• 100.0 mΩ – 999.9 mΩ/ 0.1 mΩ

• 1.000 Ω – 9.999 Ω/ 1 mΩ

• 10.00 Ω - 99.99 Ω/ 10 mΩ

• 100.0 Ω – 999.9 Ω/ 0.1 Ω

Dimensions and Weight

• Dimensions (W x H x D): 198 mm x 250 mm x 350 m/ 7.8 in x 9.8 in x 13.8 in

• Weight: 8.0 kg / 17.6 lbs

Environmental Conditions

• Operating temperature: -20 ºC to +55 ºC / -4 °F to +131 ºF

• Storage & transportation temperature: -40 ºC to +70 ºC / -40 °F to +158 ºF

• Humidity 0% - 95% relative humidity, non-condensing

Mains Power Supply

• Connection according to IEC/EN60320-1; UL498, CSA 22.2

• Mains supply: 90 V – 264 V AC

• Frequency: 50 / 60 Hz

• Input power: 1200 VA
