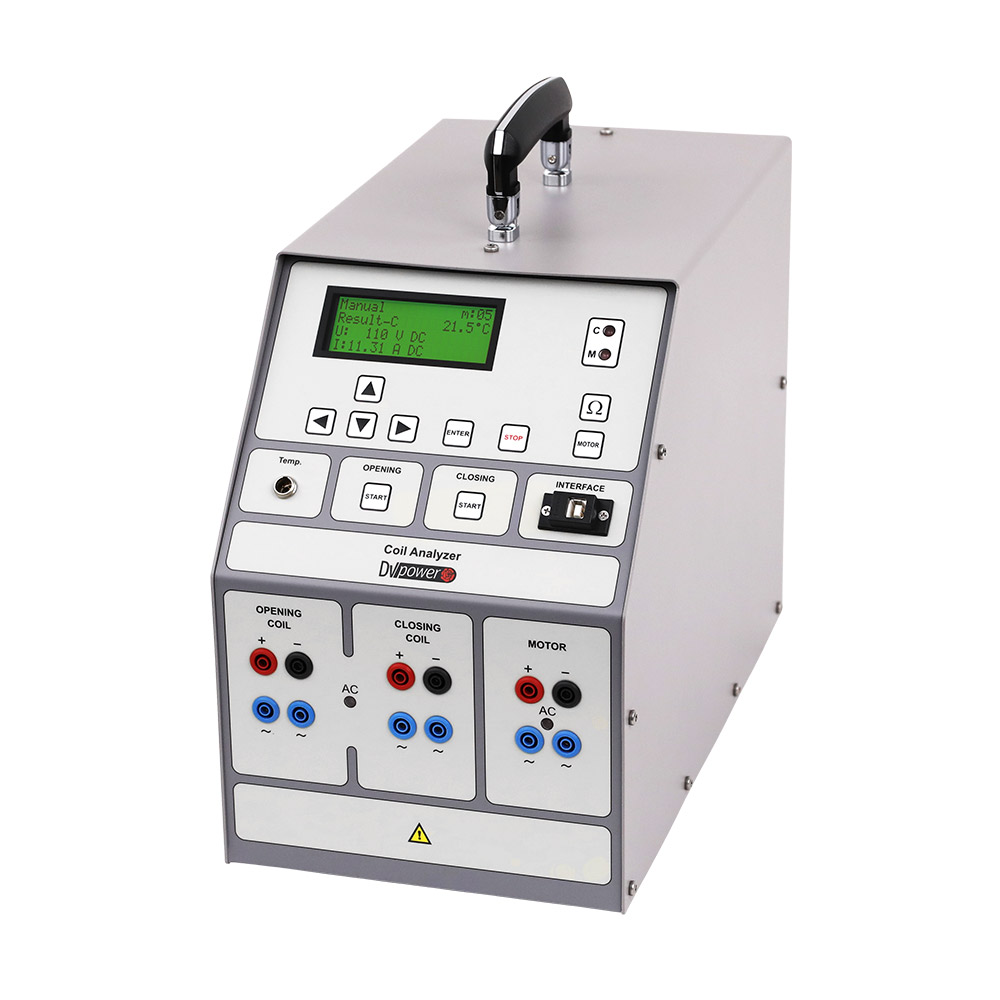

DV Power SAT40A II series Coil Analyzers & Power Supply Units

Mains Power Supply

Connection: according to IEC/EN60320-1; UL498, CSA 22.2

Voltage 90 V – 264 V AC, 50/60 Hz, Single phase

Maximum power consumption: 4000 VA

Output data

Coils output DC Voltage 10 V to 300 V DC

Coils output AC Voltage 10 V to 250 V AC; 50 Hz; true RMS

Motor output DC or AC Voltage 10 V to 250 V DC/AC

Output current: max 40 A (motor output)

Measurement

Voltage: 10 V – 300 V DC or 10 V – 250 V AC

Current: 1 A – 50 A

Accuracy: ± (0.25% rdg + 0.25% FS)

Coil resistance measurement

Measuring range / Resolution:

1 Ω – 99.9 Ω / 0,1 Ω

100 Ω – 999 Ω / 1 Ω

Typical accuracy: ± (0.5 % rdg. + 0.5 F.S.)

Interface

SAT40A II series is equipped with an USB port

Optional: RS232 (connection to an external computer)

Optional: Bluetooth communication interface

Test Result Storage: SAT40A II series can store up to 1000 measurements

Environment conditions

Operating temperature: 10 ºC - +55 ºC / +14 ºF - +131 ºF

Storage and transportation: -40 ºC - +70 ºC / -40 ºF - +158 ºF

Humidity Maximum relative humidity 95%, non-condensing

Dimensions (W x H x D) with handle down 216 mm x 380 mm x 396 mm/ 8.5 in x 14.9 in x 15.59 in

Weight 11 kg / 24.3 lbs

Mechanical protection: IP50

Applicable Standards

Low Voltage Directive: Directive 2014/35/EU (CE conform).

Applicable standards, for a class I instrument, pollution degree 2

Installation category II: IEC EN 61010-1
