Weight: 15 oz
Accuracy: ± 0.25% span ± 1 least significant digit
Compliance: CE, cULus
Input Type: Thermocouple, RTD

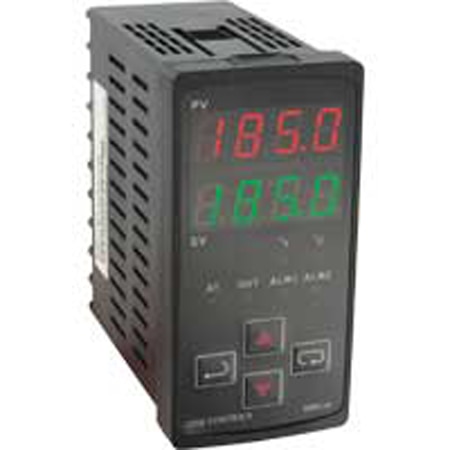

Display Note: Two 4 digit, 7 segment LED’s. PV: Red, SV: Green
Display Type: LED
Memory Backup: Non-Volatile
Control Output: Voltage Pulse
Data Interface: RS-485 Modbus ASCII
Supply Voltage: 100 to 240 Vac
Output Type (A): Current
Output Type (B): N/A
RTD Input Range: Pt100: 328 to 1112°F, -4 to 932°F, 32 to 212°F
Number of Digits: 4
Enclosure Ratings: IP56
Power Consumption: max 5 VA
Supply Power Note: 100-240 VAC, 50/60 Hz
Supply Power Type: AC
Current Output Range: 4 to 20 mA
Mounting Orientation: 1/8 DIN
Temperature Sensor Type: RTD or Thermocouple
Operating Temperature, Max: 122 °F
Operating Temperature, Min: 32 °F
Thermocouple Input Range Note: Type K: -328 to 2372°F, -328 to 932°F; Type J: -148 to 2192°F, -4 to 752°F; Type T: -328 to 752°F, 4 to 752°F; Type E: 32 to 1112°F; Type N: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 932°F; Type U: -328 to 1472°F
