Dwyer AVUL-5DA1 Air velocity transmitter (4000 FPM, ±5%, Analog universal) | EMINKH.COM

Air Velocity Transmitter
Dwyer AVUL-5DA1 Air velocity transmitter (4000 FPM, ±5%, Analog universal)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

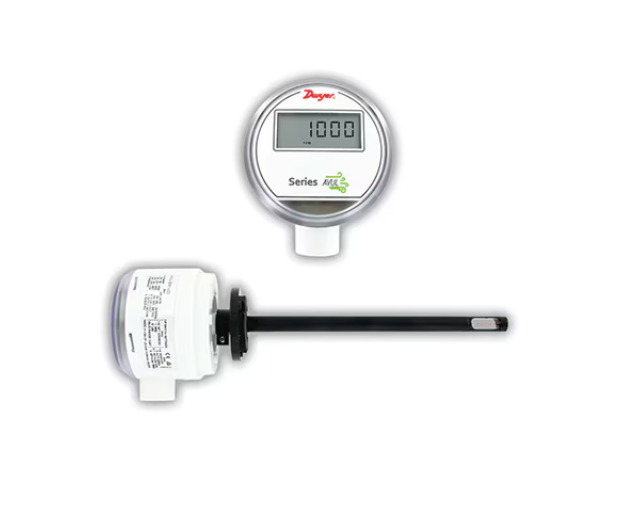

Product image

Dwyer AVUL-5DA1 Air velocity transmitter (4000 FPM, ±5%, Analog universal)

ManufacturerDwyer(View more products from this manufacturer)

ModelAVUL-5DA1

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Specifications

Service: Clean air and non-combustible, compatible gases.

Wetted Materials: Consult factory.

Range: 1000, 2000, 3000, 4000 FPM (5, 10, 15, 20 m/s); Field selectable.

Accuracy: ±(5% of reading + 0.2 m/s) @ standard

conditions, depending on model.

Temperature Limits: 32 to 122°F (0 to 50°C).

Power Requirements: 24 VDC ±20% or 24 VAC ±20%.

Humidity Limits: 5 to 95% RH, non-condensing.

Output Signals: 4-20 mA, 0-5 VDC, 0-10 VDC.

Response Time (90%): 10 s, typical.

Zero and Span Adjustments: Digital push buttons.

Output Load Resistance: Current output: 0 to 1100 Ω max.; Voltage output:

Minimum load resistance 1 kΩ.

Current Consumption: 60 mA max.

Electrical Connections (Analog): Power and output: 4-wire removable European

style terminal block for 16 to 26 AWG.

Device Load: 1/8 unit load.

Electrical Entry: 1/2˝ NPS thread. Accessory (A-151): Cable gland for 5 to 10 mm

diameter cable.

Enclosure Rating: NEMA 4X (IP66).

Mounting Orientation: Flow direction must be parallel to the sensor tip;

See Installation section for details.

Weight: 6.0 oz (160 g).

Compliance: CE

Manual

Datasheet
