Dynaflox DMTFB Wall-mount Clamp-on Transit Time Ultrasonic Flow Meters

Name: Dynaflox DMTFB Wall-mount Clamp-on Transit Time Ultrasonic Flow Meters
Brand: Dynaflox
Availability: OutOfStock

ManufacturerDynaflox(View more products from this manufacturer)

ModelDMTFB

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Transmitter
Power Supply: standard 115/230VAC 50/60Hz, 5 VA max
Velocity: -40 ~ +40 ft/s (-12 ~+12m/s)
Display: LCD 4x16
Units Rate Totalized: User Configured (English and Metric);
Output: 4~20 mA, pulse, relay, RS232; options: up to 8 GB Data logger
Accuracy: ±1.0% of reading at rates >0.5 m/s
±2.0 % of reading at rates <0.5 m="" s="" br=""> Sensitivity: Flow Rate: 0.001ft/s (0.0003m/s)
Repeatability: 0.2% of reading
Security Keypad lockout, access code enable
Dimensions and Weight: 260 x 193 x 80 mm Weight: <2.5kg

Transducer
Liquid Types Supported: Virtually most any liquid containing less than 2% total suspended solids (TSS) or aeration
Suited Liquid Temperature
Std. Temp.: -40℃~121℃
High Temp.: -40℃~250℃
Pipe Size option:
Std M transducer: DN40-1000 (40-1000mm)
L transducer: DN1000-4500 (1000-4500mm)
S transducer: DN15-50 (15-50mm)
K type transducer: DN15-50 (15-50mm)
Dimensions and Weight:
S: Size:42*25*25; weight:<0.2kg
M: Size:60*43*43; weight:<0.5kg
L: Size:80*53*53; weight:<1.0kg

Datasheet

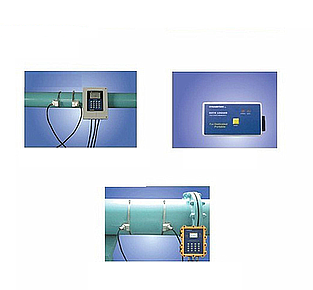

Option transmitter:

Option Tranduser:

Option K-mode Small-Pipe Round Clamp-on Transducer P

Series DMTFB wall-mount Clamp-on Transit Time Ultrasonic Flow Meters

Features

1. Due to the non-invasive nature of the clamp-on technology, there is no pressure drop, no moving parts, no leakage, no risk of contamination and corrosion.

2. Measurement is independent of fluid conductivity with wider applications than magnetic meters.

3. Non-invasive, NEMA 4X (IP65) clamp-on transducer is easy to install and cost efficient. Since the transducers do not contact with the liquid, fouling and maintenance are eliminated.

4. Parallel operation of positive, negative and net flow totalizers with multiplier, while the output of totalizer pulse or flow rate frequency output are transmitted via open collector terminal.

5. Standard type and Explosion-Proof ATEX(ExdIIBT6; LCIE 09 ATEX 3008) type are available, with wide operating temperature range : -40â„ƒ~250â„ƒ.

6. Wide range of pipe sizes from DN15 to 4500.

7. Clamp-on transducers require no pipe cutting or processing interrupted.

8. Wide bi-directional flow range of -40 to 40 ft/s (-12 to 12 m/s).

9. Up to 8GB SD card data logger can memory flow rate, total flow, velocity and time. Time interval can be freely setup by user.

Note: K mode transducers utilize the Round-Clamp method, and the transducers transmitting and receiving sides are connected with the pipe surface thoroughly to acquire enough coupling area, better reliability, stability, etc.
