Dynaflox DMTFF wall-mount Insertion Transit Time Ultrasonic Flow Meters

Name: Dynaflox DMTFF wall-mount Insertion Transit Time Ultrasonic Flow Meters
Brand: Dynaflox

ManufacturerDynaflox(View more products from this manufacturer)

ModelDMTFF

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Transmitter

Power Supply: standard 115/230VAC 50/60Hz, 5 VA max
Velocity: -0 ~ ±40 ft/s (0 ~±12m/s)
Display: LCD 4x16
Units Rate Totalized: User Configured (English and Metric);
Output: 4~20 mA, pulse, relay, RS232; options: up to 8 GB Data logger
Accuracy: ±1.0% of reading at rates >0.5 m/s
±2.0 % of reading at rates <0.5 m="" s="" br=""> Sensitivity: Flow Rate: 0.001ft/s (0.0003m/s)
Repeatability: 0.2% of reading
Security Keypad lockout, access code enable
Dimensions and Weight: 260 x 193 x 80 mm Weight: <2.5kg

Transducer
Liquid Types Supported: Virtually most any liquid containing less than 2% total suspended solids (TSS) or aeration
Suited Liquid Temperature:
Std. Temp.: -40℃~121℃
High Temp.: -40℃~250℃
Pipe range: DN65-4500
Cable length: standard 6m, can be optional 300m.
Pipe Size option:
Std flange transducer: DN65-2000 (65-2000mm)
S type flange transducer: DN20-65 (20-65mm)
K type transducer: DN6-65 (6-65mm)

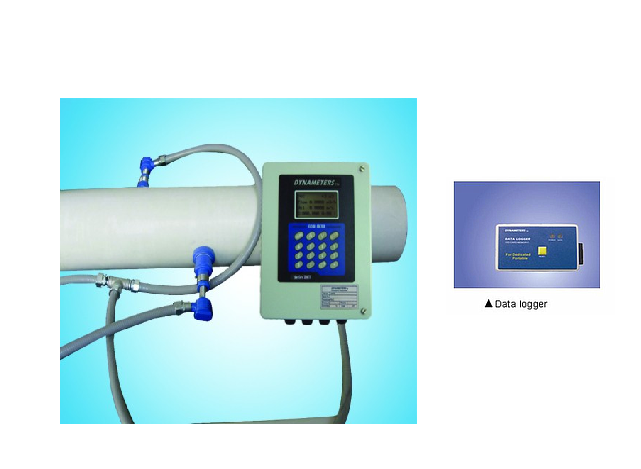

Series DMTFF Wall-mount Flanged Transit Time Ultrasonic Flow Meters

Features

1. Calibrated in manufacture lab, field setup is unnecessary.

2. Measurement is independent of fluid nature with wider applications than magnetic meters.

3. Available including up to 8GB event data logger, can search the event of totalizer flow, flow rate, velocity etc.　

4. Parallel operation of positive, negative and net flow totalizer, while the output of totalizer pulse and frequency output are transmitted via open collector.

5. Re-calibration or maintenance is easy, no processing interruption (just plug out the inserted transducers from pipe line, when re-calibration or maintenance is finished), can be hot-tapped.

Wall-mount Flanged Ultrasonic Flow Meters

Note:

Can measure the lowest velocity of 0.003m/s, inlet and outlet of the pipe can be mounted according to the request of users. Pipe Sizes: DN15, DN20, DN25, DN32, DN40, DN50, the specifications of inlet pipe can be selected by users: DN6, DN10, DN12, DN15, DN18, DN20, DN25, DN32, DN40, and DN50. Sanitary type can also provide be according to request of users. It can measure all kinds of Micro-flow solution, chemical liquid, ultra pure water, water, liquid, media, etc.

Specifications

Parameters of Flanged Transducer:

Wall-mount Flanged Ultrasonic Flow Meters

Size ND	Transducer Length	Flange Size			Rated Pressure(Mpa)
（mm）	L（mm）	D	D1	N-φ	Rated Pressure(Mpa)
50	200	165	125	4-18	1.6
65	200	185	145	4-48
80	225	200	160	8-18
100	250	220	180	8-18
125	250	250	210	8-18
150	300	285	240	8-22
200	350	340	295	12-22
250	450	405	355	12-26
300	500	460	410	12-26
350	550	520	470	16-26
400	600	580	525	16-26
450	700	640	585	20-30
500	800	670	620	20-34
600	1000	780	725	20-36
700	1100	860	810	24-36	1.0
800	1200	975	920	24-39	0.6
900	1300	1075	1020	28-39	0.6
1000	1400	1175	1120	28-42	0.6
1100	1500	1355	1290	32-45	0.6
1200	1600	1455	1310	32-48	0.6
1400	1800	1685	1590	36-48	0.6
1600	2000	1930	1820	40-55	0.6
1800	2200	2130	2020	40-55	0.6
2000	2400	2345	2220	48-60	0.6
