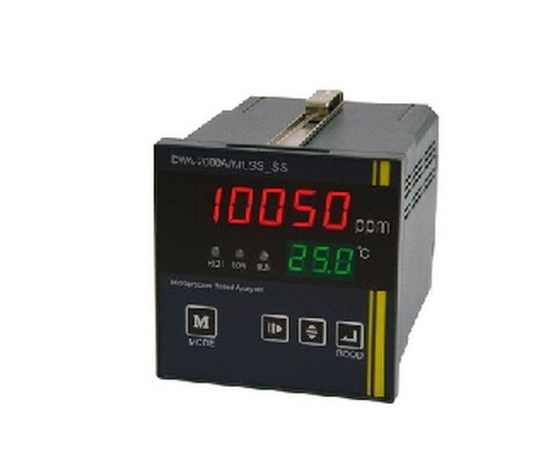

DYS DWA – 3000A-D.O Analyzer and control DO - 4 points SET

ManufacturerDYS(View more products from this manufacturer)
ModelDWA-3000A-D.O
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available

Function / Features

- Certificate : New Excellent Product (NeP)
Certificate of Patent
Certificate of CE
- English Display
- Real Time Trend Graph Function
- Relay Contact output - HH, L, L, LL & Cleaning Contact
- Simple Operation by 7 Keypad Button
- Large Size LCD Screen (160*128)
- Back-Light LCD
- Isolated(4~20, 0~20, 0~24 mA DC) Output Transmission
- RS-232(Std.), RS485(option) Communication
- Automatic Cleaning Control(Air jet, Water jet) Function
- Wall Mounting / 2B pipe Stanchion Mounting
- Microprocessor-based Digital Program Controller

http://dymeter.com/img/bl02.gifSpecifications - Code No. : 41313001DO
- MODEL : DWA-3000A-DO
- Channel : single channel
- Meas. Range : 0 to 20 mg/L (Resolution: 0.01)
- Meas. Method : polarograph
- Power : AC 110/220V, 50/60Hz, 3VA
- Accuracy : ± 1% of F.S
- Repetition &Reappearance : ± 1% of F.S
- Response time : 120 sec(90% saturation)
- Analog output : 4~20mA DC
- Digital output : RS-232C, RS485
- Relay output : HH, H, L, LL & Cleaning Contact
- Display : Trend graph, measuring value, Temp.
- Humidity : max. 90%(non-condensing)
- IP Rating : IP65
- Size : 240(W)x180(H)x115(D)
- Installation : Wall mounting

OPTION:



D.O ELECTRODE



PRICES (USD)

1

Electrodes ONLINE FOR TREATMENT, BODY BY PPS
Model D34
Manufacturer: DYS - Korea
- Electrode online using the appropriate measure DO in wastewater.
- Measuring range: 0-20 pppm
- Temperature scale: 0 - 800C
- Temperature Sensor: Pt1000 sensor
- Maximum pressure: 0.4 Mpa
- Body electrode with PPS, 5m long cable
- Ren screw ¾ "NPT

1



2

Electrodes ONLINE MULTI-PURPOSE, WITH BODY PPS
Model D21
Manufacturer: DYS - Korea
- Multipurpose electrode D.O online.
- Measuring range: 0 - 20 ppm
- Temperature scale: 0 - 800C
- Temperature Sensor: Pt1000 sensor
- Maximum pressure: 0.3 Mpa
- Body electrode with PPS, 5m long cable
- Ren screw ¾ "NPT

1



3

Electrodes ONLINE USED IN WATER AND WATER PURITY, BODY BY PPS
Model D13F
Manufacturer: DYS - Korea
- DO electrode using appropriate online measurements in water and purified water.
- Scale: 40 ppb - 20 ppm
- Temperature scale: 0 - 800C
- Temperature Sensor: Pt1000 sensor
- Maximum pressure: 0.3 Mpa
- Body electrodes SUS316L stainless steel, cable length 5m
- Ren PG 13.5 screw

1



4

ACCESSORIES FOR POWER POLE D.O
code 21M
Manufacturer: DYS - Korea
- Includes a bottle of electromagnet poles and three membrane replacement (for electrodes D21)

1
