DYT FC-03S Firefighting Thermal Camera (384 * 288 px, -20°C ~ 1200°C) | EMINKH.COM

DYT FC-03S Firefighting Thermal Camera (384 * 288 px, -20°C ~ 1200°C)

Name: DYT FC-03S Firefighting Thermal Camera (384 * 288 px, -20°C ~ 1200°C)
Brand: DYT

ManufacturerDYT(View more products from this manufacturer)

ModelFC-03S

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Infrared resolution: 384*288

Spectral range: 8~14um

Refresh rate: 50 Hz

NETD: <40mK@25℃

Measurement range: -20℃~1200℃ （can be customized）

Measurement accuracy: High enhancement(-20℃~200℃) (±2℃，±2%)，low enhancement(200℃~1200℃) (±5℃)

Lens: 10mm/F1.0

Focus: Fixed 0.5m~¥

Measurement mode: Center point, high and low temperature tracking, regional temperature measurement, support temperature alarm function, color bar display function, temperature unit can be set in Fahrenheit, Celsius, and Kelvin

Screen: 3.5-inch high temperature resistant display, screen brightness supports automatic adjustment

Image mode: Infrared thermal

Display mode: Basic fire mode, black and white fire mode, fire mode, search and rescue mode, heat detection mode

WIFI: Support

Buttons: 3 button and 1 trigger

Battery: Removable battery, explosion-proof battery, equipped with charging box for charging

Battery specs: Pluggable and replaceable battery compartment, supports explosion-proof and high-temperature resistance

Photo: Support full radiometric temperature picture

Video record: Support

Storage: Standard 64G SD card，max support 256G

Mobile phone scan: Support WIFI connect to mobile phone, operate on APP

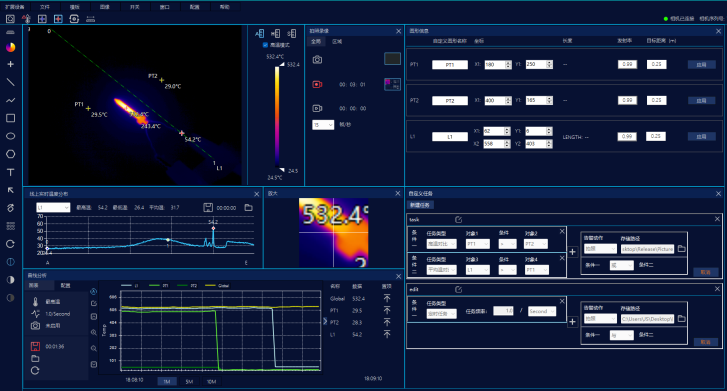

Professional analysis software: Supports professional analysis software, which can analyze temperature photos, temperature videos, report output, and temperature curves

Protection level: IP67，2 meters drop test

High-temp resistant level: Work 30 minutes at 80℃，work 10 minutes at 120℃，work 5 minutes at 260℃

Weight: 970g

Size: 110×248 mm

Packing list

Main unit: 1pcs

Charger: 1pcs

Adapter: 1pcs

Battery: 1pcs

Shoulder strap: 1pcs

USB type-C cable: 1pcs

SD card: 1pcs

Card reader: 1pcs

Instruction manual: 1 pcs

Dianyang Technology Company's FC series firefighting thermal camera is specially designed for fire-fighting thermal imaging applications. It is fire-resistant, waterproof, and anti-fall. It can detect fire sources at high-temperature fire scenes, conduct search and rescue, and provide ultra-clear images.
