Resolution:256´192
Spectral range:8-14 um
Pixel Pitch:12um
NETD:<50mK @25℃, F#1.0
Frame Rate:25Hz
Working temperature:-20-60℃
Weight:<90g
Interface:USB, HDMI
Eyepiece:LCOS 0.2′ screen
Resolution of 720´576
Laser indication:Support
Electronic amplification:1x/2x/4x electronic amplification is supported
Lens:10.8mm/F1.0
Temperature measuring accuracy:±3℃ or ±3% of the reading, whichever is greater
Voltage:5V DC
Palette:8 built-in palettes
Lens parameters:4mm, 6.8mm, 9.1mm, and 11mm are supported
Focus mode:Manual focusing/fixed focus
Picture save:SD card
Photograph:Photos of MJEG format
Laser ranging:TTL interface is provided, for which it can be equipped with different laser ranging modules
Key:A key board including 4 keys is provided, for which it can adjust the function sequence according to a customer’s requirements
Overview

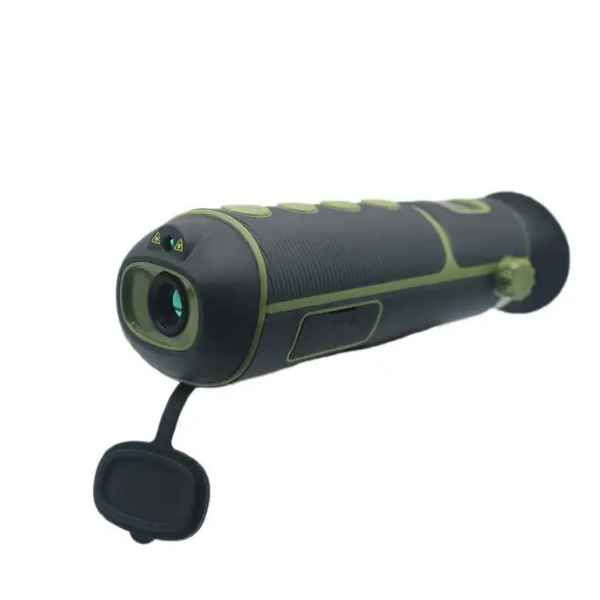

N-12 night vision device module is specially used for infrared thermal imaging night vision products, which contains a complete set of solution components such as objective lens, eyepiece, thermal imaging component, key, circuit module and battery. A consumer may complete the development of an infrared thermal imaging night-vision device in no time, with only the appearance design to consider.
Product Features
The module is complete, with no need to consider additional development;
The resolution of 256 * 192 provides clear image and supports a variety of palettes;
Photograph and storing photos with SD card are supported;
HDMI video output is supported, for which it can be connected to an external screen for video output;
USB charging and image copying are supported;
A four-key design, with power supply, photographing, electronic amplification (1x/2x/4x amplification), palette, laser indication and other functions;
Laser indication is supported;
LCOS screen is adopted for the eyepiece, with a resolution of 720 * 576;
It can be connected with laser ranging module;
