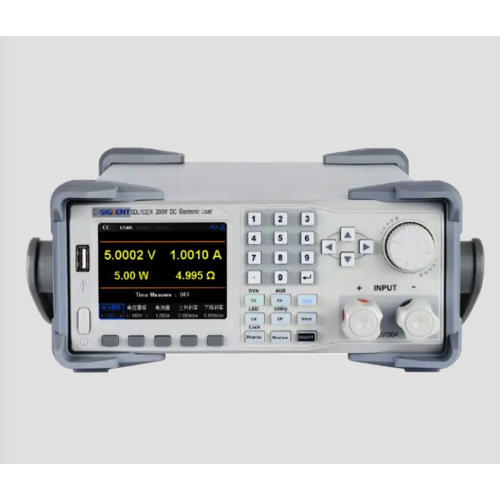

DYT SDL1000X-E DC Load Analyzer (150V/30A 200W; 1mV/1mA)

Rated value (0 - 40℃)

Input voltage: 0-150V

Input current: 0-5A; 0-30A

Input power: 200W

Minimum operating voltage: 0.15V at 5A; 0.9V at 30A

Constant voltage mode CV

Range: 0-36V; 0-150V

Resolution: 1mV

Accuracy: ±(0.05%+0.025%FS) 50ppm/℃

Constant voltage mode CV

Range: 0-5A; 0-30A

Resolution: 1mA

Accuracy: ±(0.05%+0.05%FS) 100ppm/℃

Constant resistance mode CR

Range: 0.03Ω-10KΩ

Resolution: 16bit

Accuracy: 0.01%+0.0008S

Constant power mode CP

Range: 200W

Resolution: 10mW

Accuracy: 0.1%+0.1%FS

Zero calibration method: It will calibrate to zero whenever the measuring range is changed or the measuring mode is changed.

Measuring mode: Continuous mode, pulse mode, flip mode

Adjustable current: The current rising/falling speed is between 0.001A/us - 2.5A/us (adjustable)

Functions:

Short circuit test function, battery test function, CR-LED function

Remote compensation of Sense

Communication interface: Built-in RS23/LAN/USB communication interfaces, with an optional USB-GPIB

transfer module
