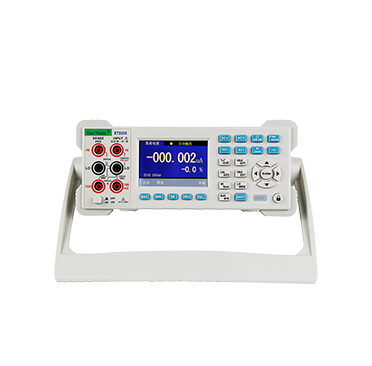

EAST TESTER ET1255 Benchtop Digital Multimeter (5 1/2 digit)

Display screen: 3.5” TFT LCD (resolution of 320*480)

Signal terminal: Front end

DCV: 1 uV~1000 V; 1uV

ACV: 1 uV~750 V; 1uV

DCI: 0.001 uA ~ 10 A; 0.001uA

ACI: 0.001 uA ~ 10 A; 0.001uA

Resistance: 0.001Ω ~20MΩ; 0.001Ω

Frequency/cycle: 0.001 Hz ~20 MHz

Capacitance: 1 pF ~ 10 mF

Maximum display: 220000 (5 1/2 digit) automatic polarity display and unit display

Range selection: Automatic/manual

Prompt of over-range: “OL” displayed on the display screen

Measurement test: 6 time/s (fast), 4times/s (medium), 1 times/s (slow)

Power voltage: AC 220V±10%, 50HZ

Operating environment: (0-40°C), relative humidity <80%

Storage environment: -10-50℃, relative humidity <80%

Dimensions: 265Mm×105mm×305mm (W×H×D)

Weight: 2.3Kg

Standard accessories:

A set of meter probes, one double-end three-core power cord, 2 spare power fuses, user’s manual

Optional accessories:

RS232 serial port line, USB cable
