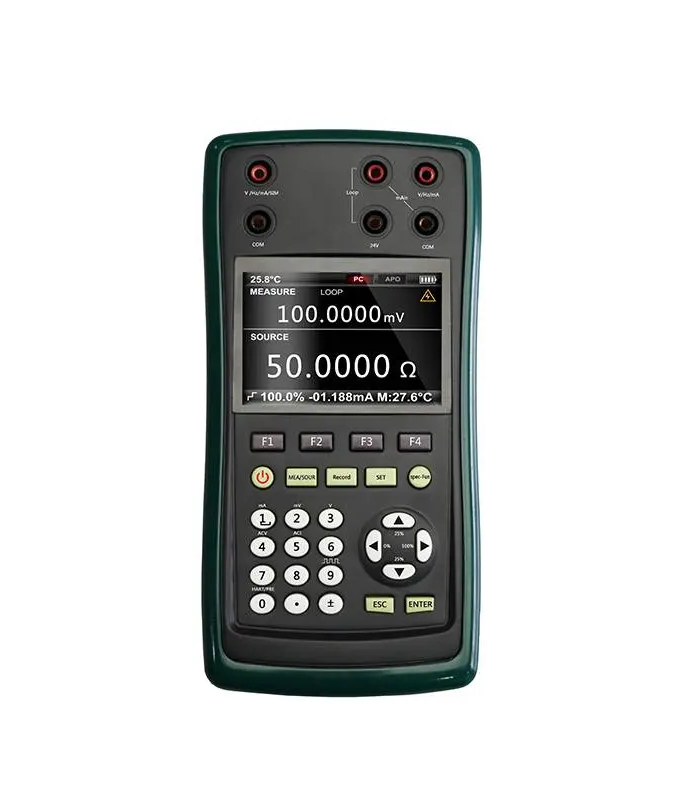

EAST TESTER ET2115B High-Precision Loop Process Calibrator (0.01%; 15～25℃)

Accuracy: 0.01%

Temp Range: 15～25℃

DC Output:

- Voltage: Range: 100mV; 1V; 10V

- Current （Active/Passive）: Range: 30mA

- Resistance: Range: 50Ω; 500Ω; 5000Ω

- 24V: Range: 24V

- Frequency: Range: 10Hz; 1kHz; 100kHz- 10Hz(1~100000); 1kHz(1~100000); 100kHz(1~100000)

- Switch value: Range:100Hz(1Hz~110Hz); 1kHz(0.1kHz~1.1kHz); 10kHz(1kHz~11kHz); 100KHz(10kHz~110kHz)

DC Measurement:

- Voltage: Range: 200mV; 2V; 20V; 200V

- Current: Range: 20mA; 200mA

- Resistance （4-wire）: Range: 50Ω; 500Ω; 5kΩ

- Resistance （2,3-wire）: Range: 50Ω; 500Ω; 5kΩ

- Frequency: Range: 10Hz; 1kHz; 100kHz

AC Measurement

- AC Voltage: Range: 200mV; 2V; 20V; 200V

- AC Current: Range: 20mA; 200mA
