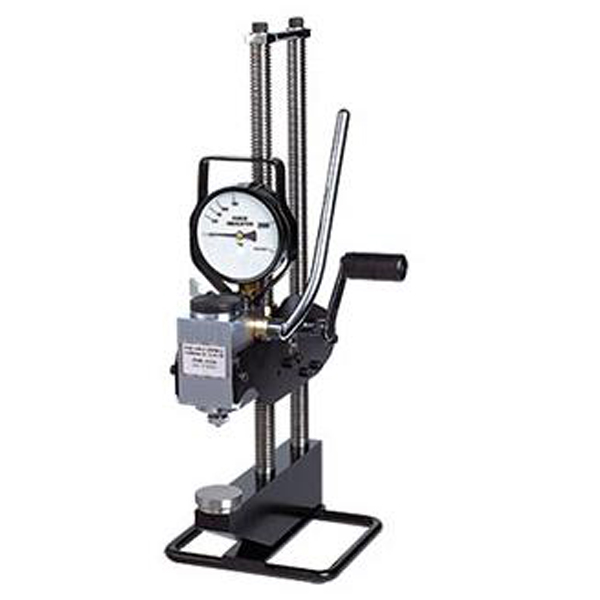

EBP B-3000P Portable Hydraulic Brinell Hardness Tester (3000 kgf)

Test Force:3000 kgf （1000 kgf, 750 kgf, 500 kgf optional）

Test Ball:10mm Carbide alloy ball （5mm optional）

Test Range:32~650 HBW

Opening Dimension:350 mm (Height) x 100 mm (Throat depth)

Indicator Error:complies with ISO 6506, and ASTM E10

Repeatability Error:complies with ISO 6506, and ASTM E10

Test Force Error:complies with ISO 6506, and ASTM E10

Weight:13.8 kg

STANDARD ACCESSORY:

1.Tester

2.Handle

3.Brinell hardness block

4.Anvil (flat, V-type, spot-type )

5.20X Reading Microscope

6.10mm Carbide alloy ball

OPTIONAL ACCESSORIES:

Brinell Hardness Block (high or low value)

Carbide alloy ball (5 mm, 10 mm)

Spare Parts (Hydraulic oil capsule, Hydraulic oil, O-ring etc.)

Maintaining Tools

Brinell Indentation Measurement System

Rechargeable Angle Grinder
