Cut-off wheel: Φ400×3.5×Φ32mm
Maximum cutting section: Φ130mm
Control Method: Automatic, Three-axis Linkage, 7 inch Industrial Touch Screen Control
Features: Schneider Electric, Siemens PLC Software, Automatic Exhaust System, Alarm System, LED Lighting, Cursor Positioning
Cutting table size: 128x320mm (Right side); 180x320mm (Left side)
Maximum travel: Z axis: 130mm; Y-axis: 200mm; X-axis: 100mm
Rotation speed: 500-3000rpm
Control system: 7" colour touch screen, Siemens PLC control system
Cutting mode: Chopping cutting, flat push cutting, sweep Cutting
Cutting speed: 0.01-1mm/s (adjustable, each step 0.01mm)
Resetting mode: automatic
Feeding motor: Stepper motor
Cooling system: automatic water cooling 2 channels
Machine version: Vertical
Input power: 4KW
Input voltage: Three-phase Four-wire 380V 50HZ
Machine size: 1350x1100x1750mm
Standard delivery:
Machine body: 1 set
Water tank 80L (Including pump): 1 set
Cutting wheel (Φ400×3.5×Φ32mm): 2 pcs
Cutting Fluid: 1 L
Quick Clamp: 1 set
Water Inlet Pipe: 1 pc
Water Outlet Pipe: 1 pc
Exhaust Pipe: 1 pc
Cleaning water gun: 1 pc
Spanner: 1 set
Manual book: 1 pc

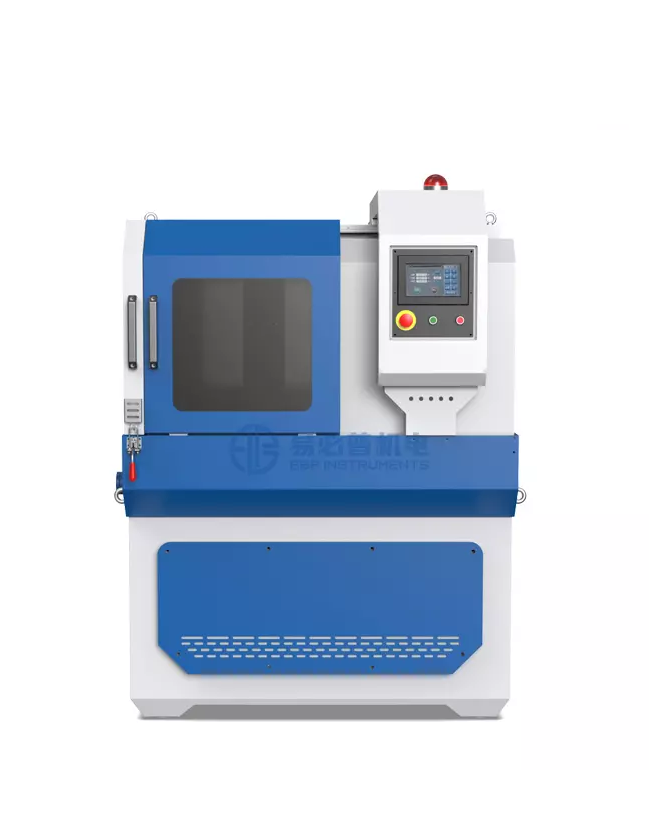

Large capacity multifunctional metallographic sample cutting machine, mainly used to cut cylindrical and polygonal and irregular general metallographic specimen materials such as tabs, the machine is a double hood fully enclosed structure and fast clamping mechanism. The machine is equipped with a fully enclosed double housing and a quick clamping mechanism to ensure that the specimen is cut in absolute safety. In order to avoid overheating during cutting and burning the specimen material, the machine is equipped with a strong cooling system, which can avoid micro-burns on the surface of the specimen when cutting down, increase the cutting cross-section, improve the utilisation rate of the cutting wheel, and has the advantages of easy operation, maintenance and maintenance.
Machine version: vertical. Machine are mainly made up of the upper (safety cover), the middle (frame), the right sliding door, the side hinged door, the lower frame (electrical box), clamps, rinsing water gun, cooling water tank (independent).
