Cutting mode: Flat push cutting, Chop cutting, sweep cutting
Motor: Variable frequency motor; 7.5kw, speed; 0-2600r/min
Control system and screen: Mitsubishi programmable controller, with 10-inch Mitsubishi touch screen
Abrasive cutting wheel size: Φ450*32*4mm
Cutting feed speed: 1~200mm/min (Suggest 5~12mm/min)
Work table size: 600*800mm (X*Y)
X Axis Travel: 150mm
Z Axis Travel: 290mm
Y Axis Travel: 750mm
Max. Cutting Capacity: Ø170mm
Water Tank Capacity: 150L
Power: Three-phase five-wire, 380V 50HZ， 6KW
Dimensions: 1850*1650*1900mm
Net weight: Around 2500KG
Standard delivery:
Machine body CM-170XYZ: 1set
Water tank (Including pump): 1set
Abrasive cutting wheel 450×5×32mm: 2pc
Water Outlet Pipe: 1pc
Water Inlet Pipe: 1pc
Large throat band: 2pc
Wrench 46mm: 1pc
Wrench 62mm: 1pc
Wrench 17-19mm: 1pc
Manual book: 1pc

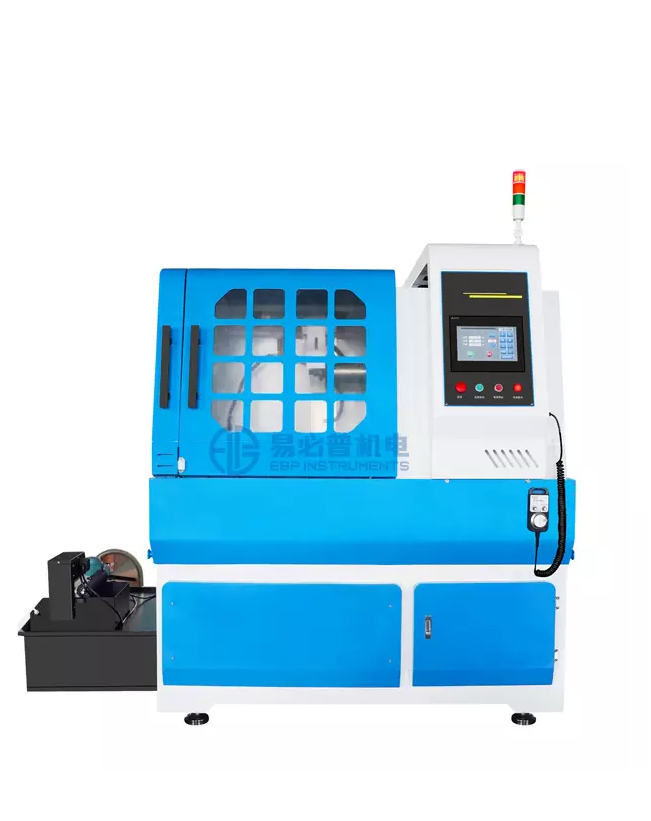

This machine is a Mitsubishi PLC controlled automatic metallographic sample cutting machine, with X, Y, Z directions automatically and precisely controlled. With intelligent cutting, the amount of feed can be adjusted depending on the material’s hardness to achieve the fastest cutting effect. Cutting speed is frequency conversion controlled, which has very high reliability and control ability.
