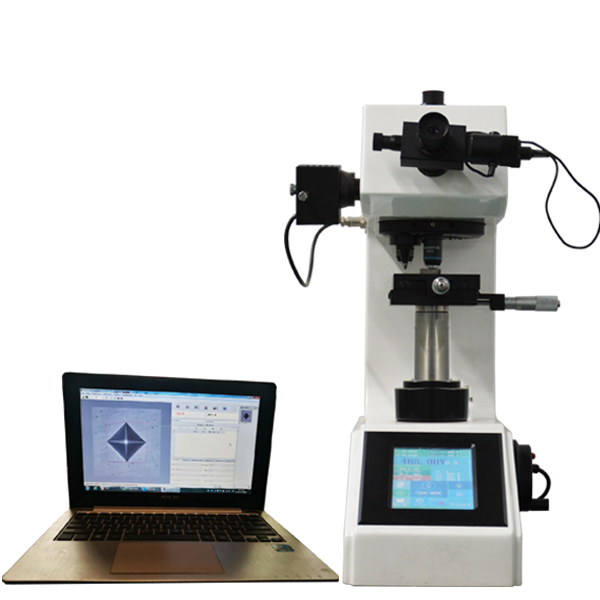

EBP DVS-1AT-5.6 Digital Micro Vickers Hardness Testing System (1HV-4000HV)

Hardness Scale:HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1

Conversion Scale:HRA, HRB, HRC, HBS, HBW, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HK

Test force:

1. gf:10, 25, 50, 100, 200, 300, 500, 1000

2. N:0.098, 0.245, 0.49, 0.98, 1.96, 2.94, 4.9, 9.8

Operation:

1. Focus:Manual focus

2. Loading:Automatic loading - dwell - unloading test force

3. Turret:Automatic turret

Magnification:10X Digital eyepiece; 10X, 40X Objective lens Total magnification: 100X (observation), 400X (measuring)

Indenter:Standard Micro Vickers diamond indenter 136°±0.5°

Dwell time:1-99s (unit: 1 second)

Data display:5.6 inch digital touch screen; Computer screen through software

Data storage:Yes, when turn-off machine memory will automatic save

Data output:Built-in printer; Software can generate test report

X-Y table:Size: 100x100mm; Max. Move range: 25x25mm

Camera:3M Pixel camera

Software:Auto measuring version, support all windows systems, win7, win10, etc Generate test report automatically in word / excel format

Light source:Halogen lamp (image more real and clear, light source strength is adjustable )

Test space:85x115mm (HxD)

Hardness value rang:1HV-4000HV

Power:220V + 5%, 50/60 Hz (110V is available)

Weight:Net weight: 52kg; Gross weight: 61kg

Size:Machine size: 490*185*515mm; Packing size: 630*430*860mm (LxWxH)
