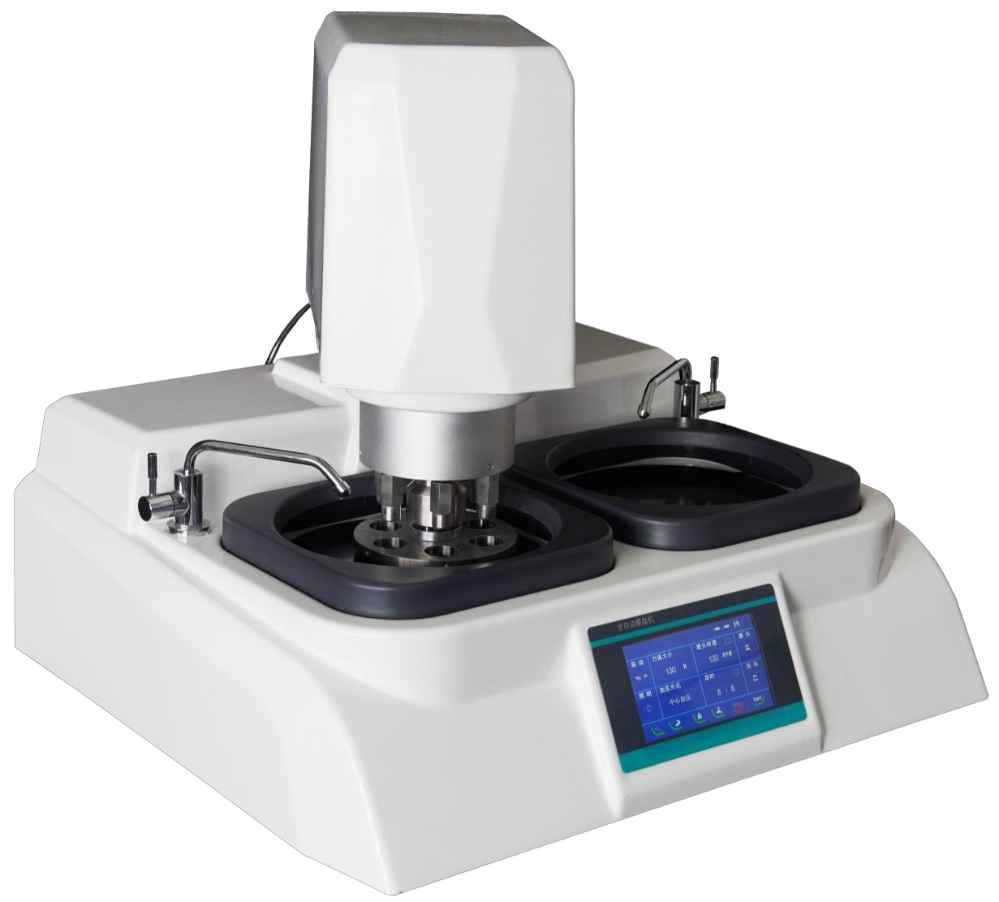

EBP eGP-2B Touch Screen Automatic Grinding-polishing Machine (0-120r/min)

Working disc: Standard φ254mm with magnetic disc

Speed of working disc: 100-1000 r/min, Support clockwise / anticlockwise direction rotating

Four level constant speeds (stepless speed): V1=300r/min, V2=500r/min, V3=800r/min, V4=1000r/min (each speed can be set between 100-1000r/min)

Grinding head speed: 0-120r/min

Sample holder: Standard φ30mm 6 pieces of samples

Automatic mode: Can be programmed speed, running time and grinding wheel steering switch

Pressure Loading type: Single point pneumatic pressurization

Pressure adjustment: By manual (Mechanical pressure regulation)

Samples pressure range: 0-0.5MPa (Commonly used 0.2-0.3Mpa)

Timing function: 0-99 minutes

Grinding head lock mode: By manual (Automatic electronic mode for optional)

Power supply: AC220V, 50/60Hz

Motor power: 2.2Kw of working wheel motor; 0.2Kw of grinding head motor

Total power: 2.8Kw

Dimension / weight: 770X730X700mm / 100kg

Packing size / Gross weight: 840x810x800mm / 120kg

Standard Accessory:

eGP-2B: 1

Diamond suspension 6μm 200ml: 1

Sandpaper with PSA (250mm) 400#: 4

Polishing cloth with PSA (250mm): 4

Sandpaper with PSA (250mm) 800#: 4

Magnetic disc (250mm): 2

Sandpaper with PSA (250mm)1200#: 45

Anti-stick disc (250mm): 3

Waterproof ring (installed on the machine): 2

Power line connector(airconnector): 1

Water inlet 0.75’’ 1 Air pump (option): 1

Water let 32mm: 1

Technical documents： manual, certificate, warranty card
