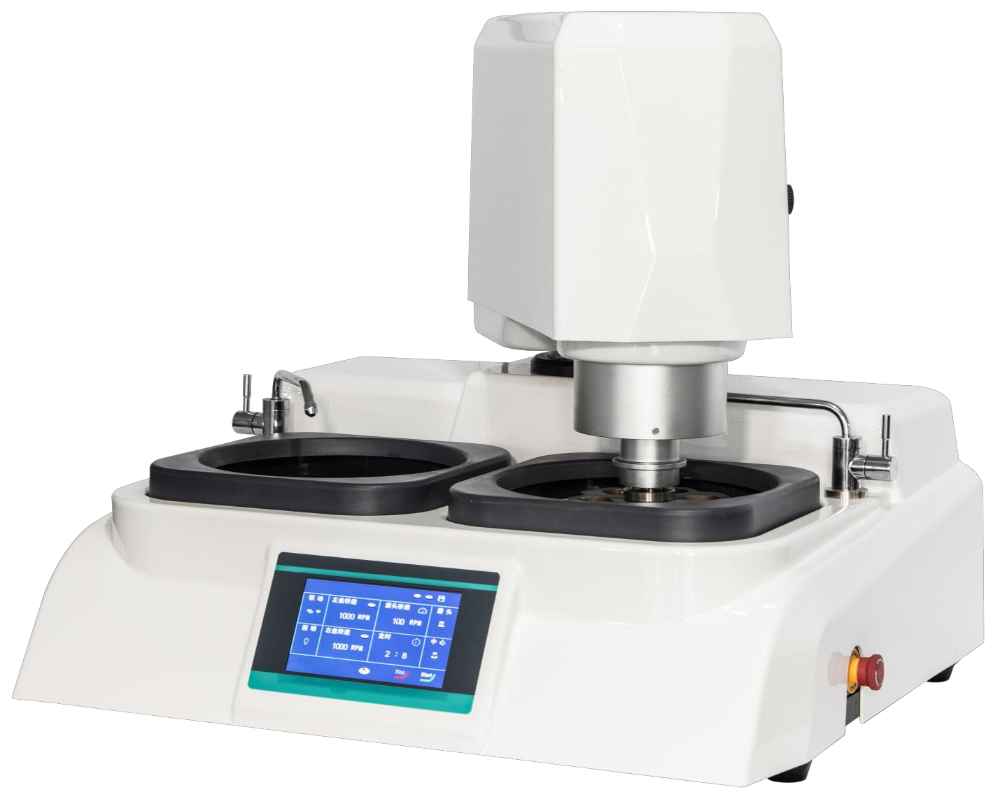

EBP eGP-2C Advanced Automatic Grinding-polishing Machine (0-120r/min, 0.2kw)

Working plate: Standard φ254mm with magnetic disc

Speed of working disc: 100-1000 r/min, Support clockwise / anticlockwise direction rotating

Four level constant speeds (stepless speed): V1=300r/min, V2=500r/min, V3=800r/min, V4=1000r/min (each speed can be set between 100-1000r/min)

Grinding head speed: 0-120r/min

Grinding head power: 0.2kw (clockwise rotating)

Grinding head lock mode: By manual (Automatic electronic mode for optional)

Pressure Loading type: Pneumatic central pressure

Samples pressure range: 0-0.5MPa (Commonly used 0.1-0.3Mpa)

Working plate power: 2.2KW (Clockwise / Anticlockwise)

Sample holder: Standard φ30mm 6 pieces of samples

Automatic mode: Can be programmed speed, running time and grinding wheel steering switch, with timing function

Pressure adjustment: By manual (Automatic electronic mode for optional)

Timing function: 0-99 minutes

Power supply: AC220V, 50Hz, 2.8KW

Dimension / weight: 770X730X700mm / 100kg

Standard Accessory:

Work plate 254mm: 2

Polishing cloth with PSA (250mm): 4

Sandpaper with PSA 400#: 4

Sandpaper with PSA 800#: 4

Sandpaper with PSA 1200#: 4

Waterproof ring (on machine): 2

Anti-stick disc (250mm): 3

Magnetic disc (250mm): 2

Water inlet 0.75’’: 1

Power line connector: 1

Water outlet 32mm: 1

Manual Book: 1

Technical documents： quality certificate, warranty card
