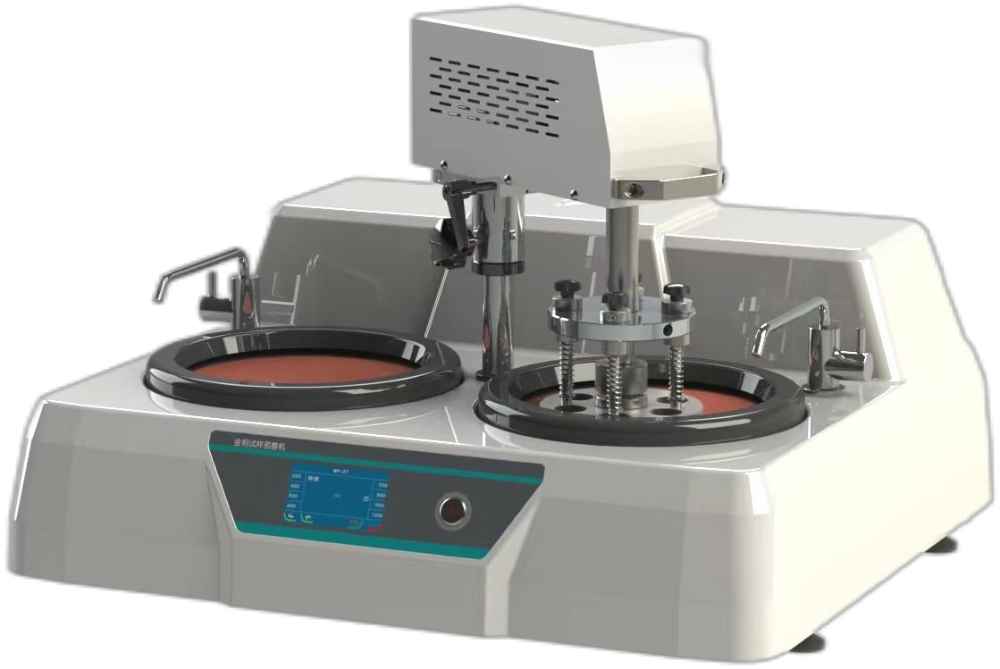

EBP eGP-2TA Touch Screen Automatic Grinding-polishing Machine (Touch Screen)

Working disc: Standard φ250mm

Speed of working disc: 50-1000 r/min (and 8 constant speed)

Support clockwise / anticlockwise direction rotating

Grinding head speed: 50 r/min

Sample holder: Standard φ30mm 4 pieces of samples

Pressure loading type: By spring mechanical loading pressure

Power supply: AC220V, 50Hz, 0.9KW

Dimension / weight: 770X730X530mm / 60kg

Packing size / G.W: 860X810X720mm / 78kg

Standard Accessory:

eGP-2TA: 1

Polishing cloth (250mm): 1

Sandpaper (250mm): 1

Waterproof ring: 4

Press ring: 2

Water outlet diameter 32mm: 1

Water inlet: 1

Power line: 1

Technical documents: manual, certificate, warranty card

Datasheet
