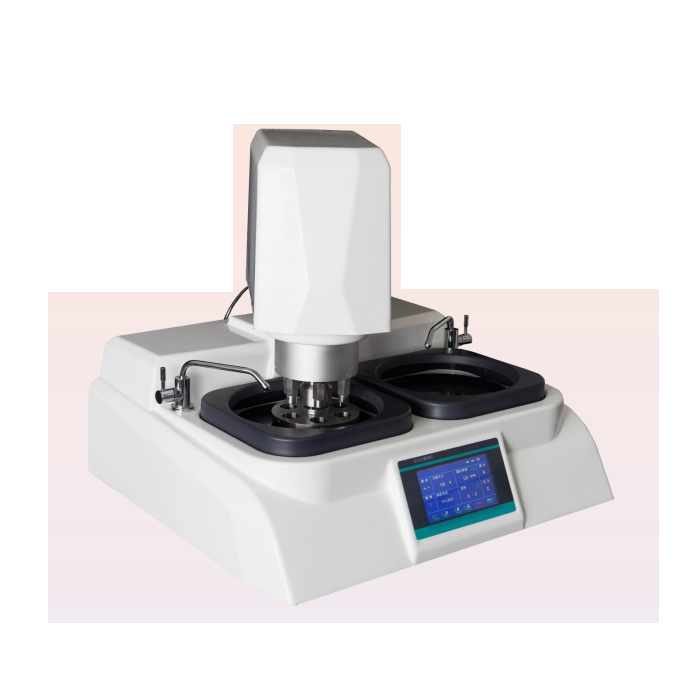

EBP GP-2000AE Touch Screen Automatic Grinding-polishing Machine (100-1000 r/min)

Working disc: Standard φ254mm with magnetic disc

Speed of working disc: 100-1000 r/min

Support clockwise / anticlockwise direction rotating

Four level constant speeds: V1=300r/min, V2=500r/min, V3=800r/min, V4=1000r/min

(each speed can be set between 100-1000r/min)

Grinding head speed: 0-120r/min

Sample holder: Standard φ30mm 4 pcs of samples

Automatic mode: Can be programmed speed, running time and grinding wheel steering switch

Samples pressure range: 0-0.5MPa (Commonly used 0.1-0.2Mpa)

Power supply: AC220V, 50/60Hz

Motor power: 1Kw

Dimension/weight: 770X730X700mm/100kg

Standard accessory:

GP-2000AE: 1

Diamond suspension 6μm 200ml: 1

Sandpaper with PSA (250mm) 400#: 4

Polishing cloth with PSA (pile coating) (254mm): 1

Sandpaper with PSA (250mm) 800#: 4

Polishing cloth with PSA (250mm): 1

Sandpaper with PSA (250mm) 1200#: 4

Magnetic disc (250mm): 2

Waterproof ring (installed on the machine): 2

Anti-stick disc (250mm): 3

Water inlet 0.75": 1

Power line connector(air connector): 1

Water let 32mm: 1

Air pump (option): 1

Technical documents: manual, certificate, warranty card
