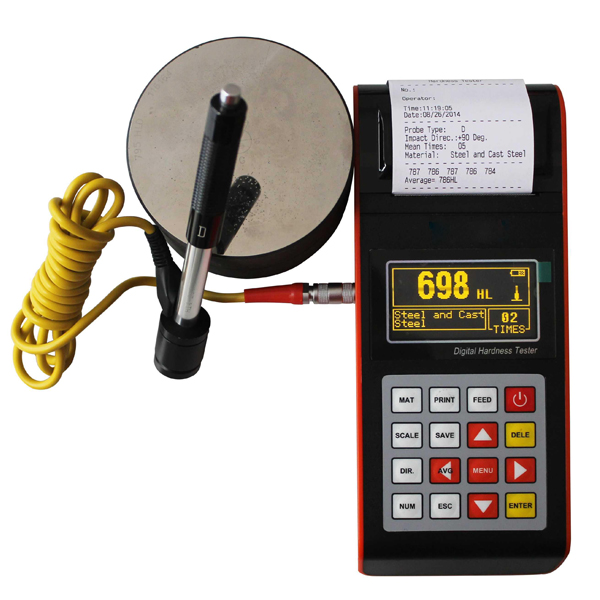

EBP L-3 Portable Leeb hardness tester

Hardness scale:HL, HB, HRB, HRC, HRA, HV, HS

Measuring range:HLD (170-960), HRC (17.9-69.5), HB (19-683), HV (80-1042), HS (30.6-102.6), HRA(59.1-88), HRB (13.5-101.7)

Display LCD:dot matrix LCD, 128×64 dots

Data memory:500 groups max.

Printing paper:width is （57.5±0.5）mm, diameter is 30mm

Standard Impact Device:D

Optional Impact Devices:DC, D+15, G, C, DL

Battery pack:6V NI-MH

Battery charger:9V/500mA

Continuous Working time:200 h

Communication interface:USB2.0

Operating temperature:-10℃~40℃

Humidity:≤90%

Dimensions:210 x 85 x 45mm (main unit)

Weight approx.:about 0.6kg (host).

Standard Delivery:

Main unit1

D type impact device1With cable

Small supporting ring1

Nylon brush (A)1

Battery Charger19V 500mA

Paper for printing1

High value Leeb test block1

Instruction Manual1

Box Of Instrument1

Ứng dụng Máy đo độ cứng cầm tay Leeb EBP L-3:

- Vật liệu đo: Thép và thép đúc, thép công cụ hợp kim, thép không gỉ, gang xám, gang đúc, hợp kim nhôm đúc, hợp kim kẽm đồng (đồng thau), hợp kim đồng và thiếc, đồng (đồng), thép rèn
