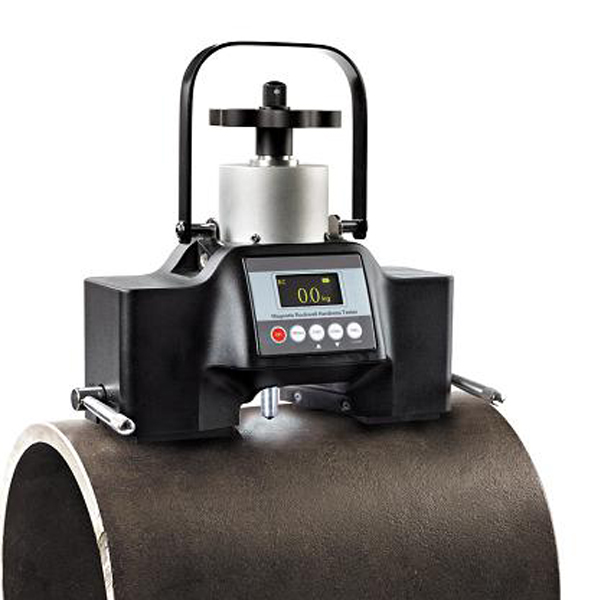

EBP PR-150D EBP PR-150D Portable Digital Rockwell Hardness Tester

Initial test force:10kgf

Main test force:60kgf, 100kgf, 150kgf

Testing range:20~88HRA, 20~100 HRB, 20~70 HRC

Indenter:120°diamond Rockwell indenter, φ1.588mm hard alloy ball indenter

Indication error:Complying with ISO6508 and ASTM E18

Repeatability error:Complying with ISO6508 and ASTM E18

Test Resolution0.1HR:

Weight:5.3kg

Surface

1. Flat: Area ≥195mm x 60mm, thickness≥8mm

2. Cylinder: Diameter≥50mm, length≥200mm, thickness≥8mm

Test Force Error:≤ ± 1%

Operating Temperature:0 ~ 50℃

Standard delivery:

1)PR-150D Tester

2)120°diamond Rockwell indenter

3)φ1.588mm hard alloy ball indenter

4)Rockwell hardness block

5)Seat Iron

6)Recharger

7)Battery box

8)Carrying case
