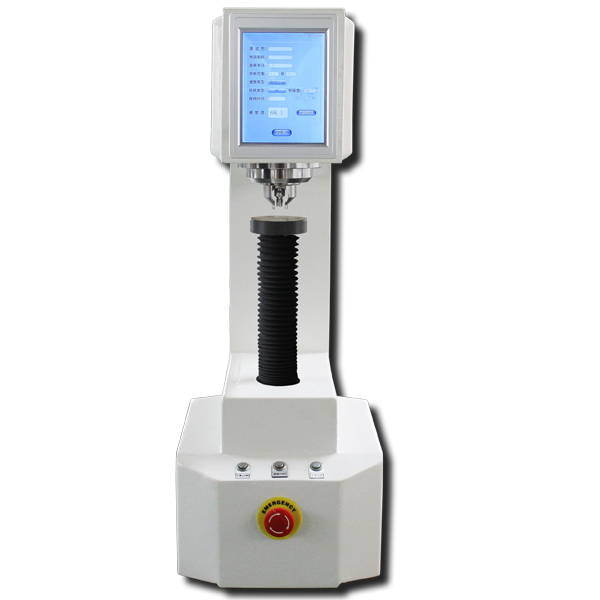

EBP R-150AT Automatic Rockwell hardness testing system

Rockwell scale:HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV

Conversion scale:HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Test force (error < 0.5%)60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N); Initial force: 10kgf (98N)

Dwell time:0-99s

Hardness testing range:HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRE:70-100 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 HRL:100-120 HRM:85-115 HRR:114-125

Resolution: 0.1HR

Executive standard:BSEN 6508, ISO 6508, ASTM E18, GB/T230, JJG112 verification regulation

Testing space:Height: 250mm; Depth: 200mm

Hardness reading:LCD display

Data output:USB flash disk

Power supply:AC220±5%, 50-60Hz

Net weight:80kg

Accessories:

Diamond Rockwell indenter1

Ball indenter with the diameter of 1.5875 mm1

Hardness block(HRB, HRC high, HRC low)3

Large, medium, V-type testing table1 for each

USB flash disk, touch screen pen1 for eachManual book1

Power line1
