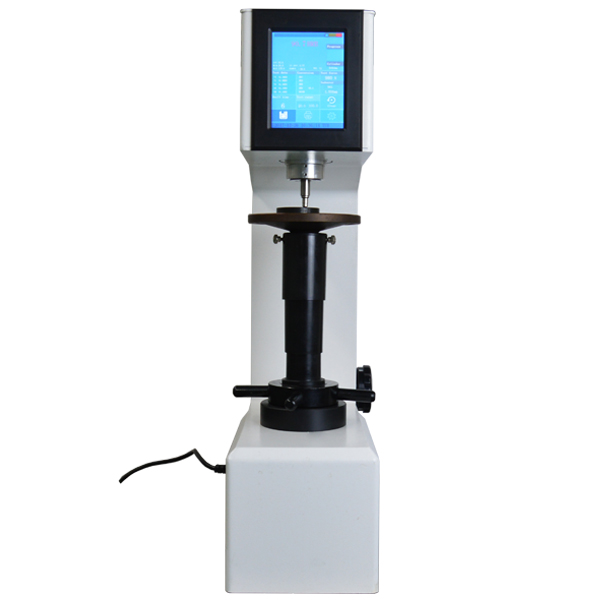

EBP R-150TC Digital Rockwell Hardness Tester

Hardness scale: HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRR,HRP,HRV,HRS

Conversion scale:HRA,HRB,HRC,HRD,HRF,HRE,HRG,HRH,HRK,HV,HK,HBW,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T

Initial test force:10kg (98N)

Main test force:60Kg(588N),100Kg(980N),150Kg(1471N); test force error±1.0%

Resolution:0.1HR

Hardness range:20-88HRA,20-100HRB,20-70HRC

Hardness value reading:5.6 inch color touch screen

Load method:Automatic

Dwell time:1-99s

Instrument size:Maximum height 170mm, maximum depth 160mm

Size and Weight:Size：520*180*690mm (L*W*H); Net weight :51kg Package: 630*430*900mm (L*W*H); gross weight :65kg

Power supply:220V, 50/60Hz

Data output:Build-in printer, RS-232 interface, 96 groups storage

Executed Standard:GB/T230.2, ASTM E18, ISO 6508, JJG112

Standard accessories:

Hardness tester 1set

Rockwell diamond indenter 1 pc

Φ1.588mm hard alloy ball indenter 1pc

Standard block 3 pcs

Big test bench 1pc

Middle test bench 1pc

V-shape test bench 1pc

Φ1.588mm steel ball 5pcs

Power wire 1pc

Dust cover 1pc

Accessory box 1pc

User manual 1pc
