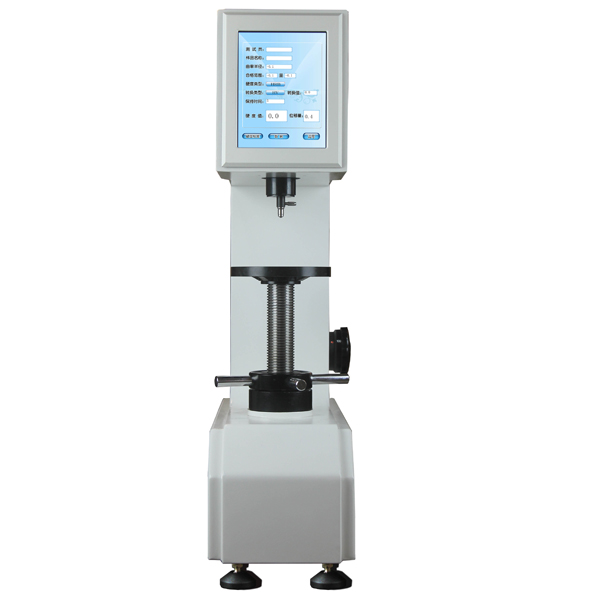

EBP R-150TP Touch Screen Digital Plastic Rockwell hardness testers

Initial load:10Kg(98.0N)

Total load:60kgf (588N), 100kgf(980N), 150kgf(1471N)

Rockwell Scale:HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV

Conversion Scale:HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HBW

Hardness range:HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120, HRM:85-115, HRR:114-125

Dwell time:0-99s

Resolution:0.1HR

Load value error:＜0.5%

Hardness reading:LCD display

Screen size:8 inch

Data Storage / Output:

1) Machine can store 60 pcs test results, over 60pcs memories machine will delete the last time test result

2) Built-in printer

3) RS-232 interface (or USB flash disk automatically stored) 4) If want to connect with computer, have to additional purchase software.

Carried Standard:BSEN 6508, ISO 6508, ASTM E18, GB/T230

Max Height of Specimen:200mm

Throat depth:160mm

Overall Dimension:560×200×800mm

Net weight:70kg

Power supply:AC220+5%,50～60Hz
