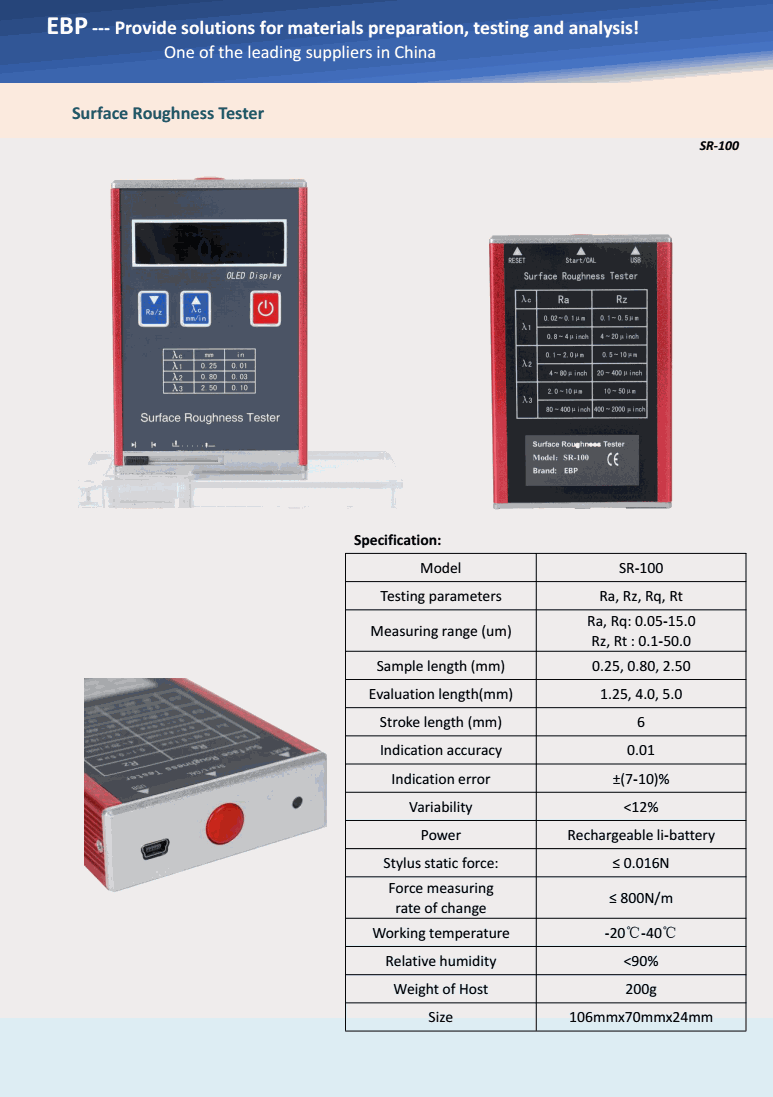

Testing parameters: Ra, Rz, Rq, Rt
Measuring range (um):
Ra, Rq: 0.05-15.0
Rz, Rt : 0.1-50.0
Sample length (mm): 0.25, 0.80, 2.50
Evaluation length(mm): 1.25, 4.0, 5.0
Stroke length (mm): 6
Indication accuracy: 0.01
Indication error: ±(7-10)%
Variability: <12%
Power: Rechargeable li-battery
Stylus static force: ≤ 0.016N
Force measuring rate of change: ≤ 800N/m
Working temperature: -20℃-40℃
Relative humidity: <90%
Weight of Host: 200g
Size: 106mmx70mmx24mm
