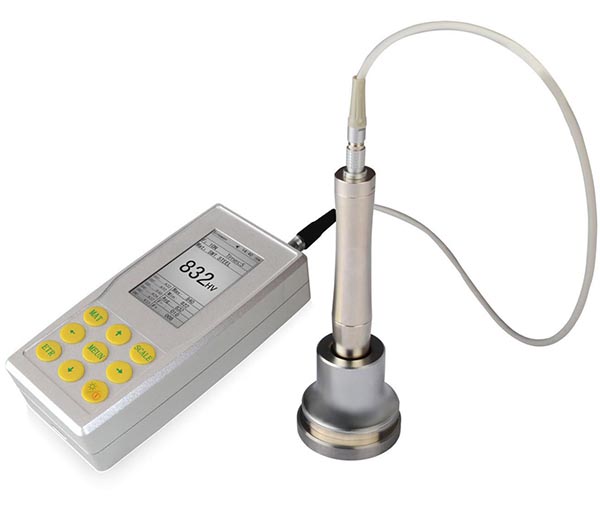

EBP SU-100 Ultrasonic Hardness Tester

Loading Force:0.3Kgf (Optional: 1Kgf, 2kgf, 5Kgf, 10Kgf)

Measuring Range:HV: 50～999; HRC: 20～70 HB: 85-650

Hardness Scale:HV, HB, HRC, etc.

Measuring Accuracy:HV: ±3%HV; HRC: ±1.5HRC; HB: ±3%HB

Indenter:136° Vickers Diamond Indenter

Measuring Direction:Support 360°

Hardness Indication:LCD display

Data display:Loading force, Testing-times, Testing result, Average, Maximum, Minimum, Deviation and Conversion scale.

Data Storage:To save 2000-groups of measuring data and 20-groups of calibration data

Operating Environment:Temperature: -10℃~50℃; Humidity: 30%~80%R.H

Operating Voltage:DC 6V

Dimensions:Machine: 160x80x31mm; Packing: 35x35x15cm

Net Weight:Approximate 500g (Without probe)

Gross weight:5kg (After packing with standard accessories)
