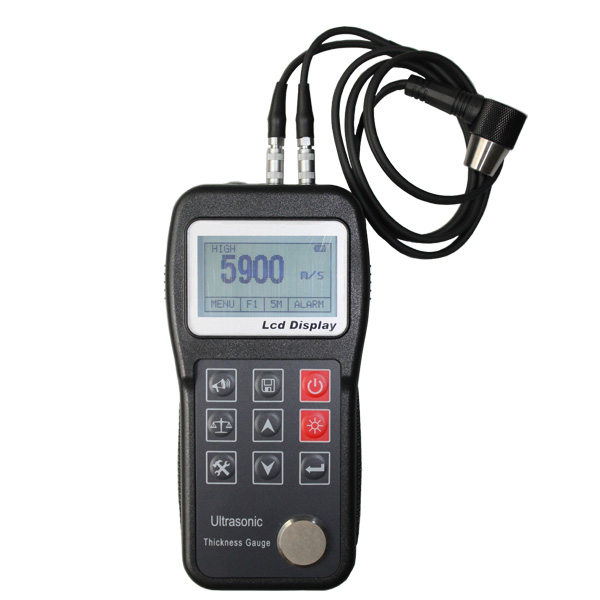

EBP UT-100B Ultrasonic Thickness Gauge

Operating temperature:1.2mm-225mm with 5MHz transducer 5mm-3mm with 2MHz transducer

Operating temperature:-10C to 60C

Lower limit steel pipes:dia.20mmx3mm

Display resolution(selectable):0.1mm / 0.01mm or 0.01inch / 0.001inch

Sound Velocity Range:1000m/s~9999m/s(0.039~0.394in/μs

Measuring accuracy:±1%Thickness+0.1mm

Power Source:2pcs 1.5V AA size,batteries

Battery life:250 hours typical operating time(LED backlight off)

Weight:370g

Outline Dimensions:152mm*74mm*35mm

Data output:RS232 interface for printer or pc

Transducer:

TSTU32:5.0 to 300.0mm (steel);22mm;2MHz;-10C to 60C

5PØ10:1.2-225.0mm (steel);10mm;5MHz;-10C to 60C

Packing list:

Main unit1

Transducer 5PØ101

Ultrasonic couplant1

Batteries AA 1.5V2

Instruction manual1

Carrying case1
