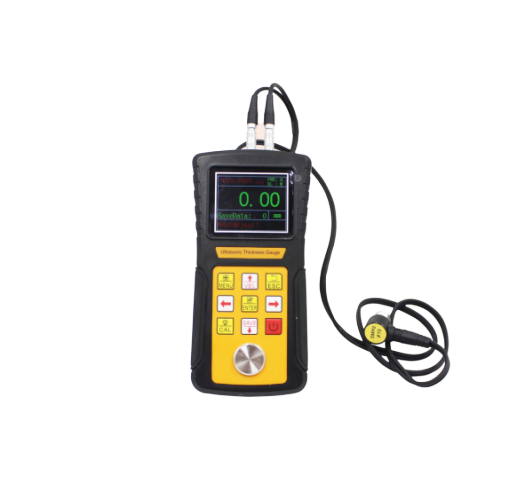

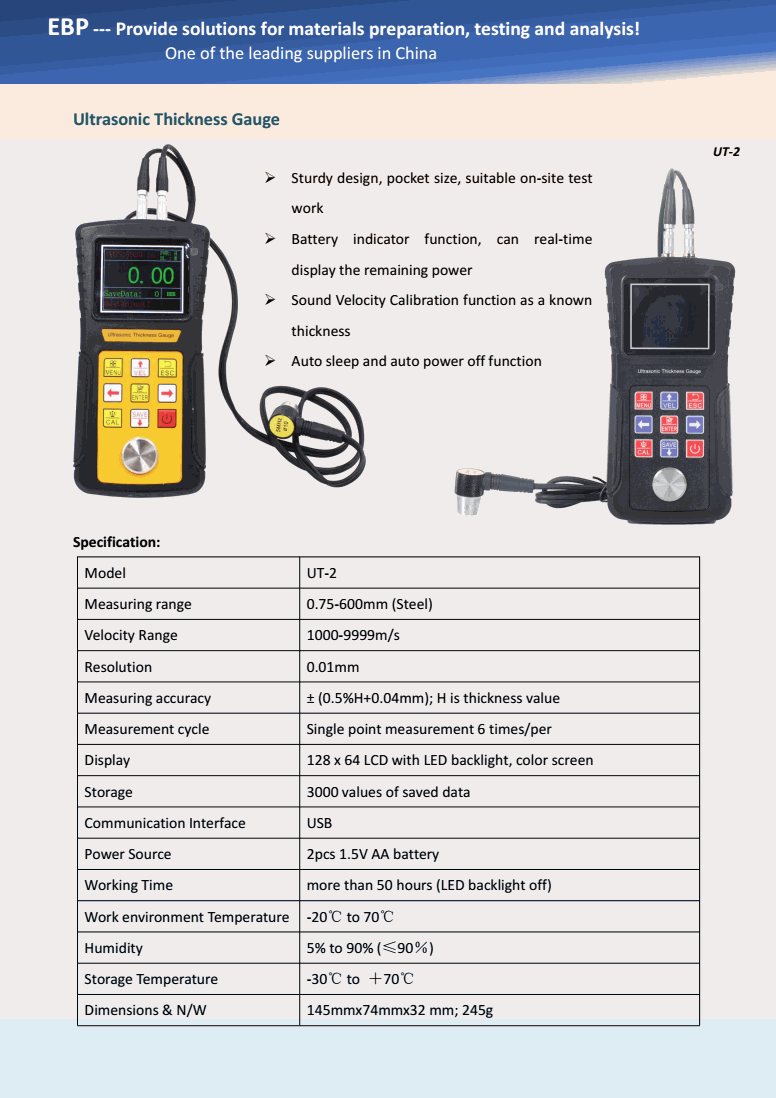

EBP UT-2 Ultrasonic Thickness Gauge (0.75-600mm)

Measuring range: 0.75-600mm (Steel)

Velocity Range: 1000-9999m/s

Resolution: 0.01mm

Measuring accuracy: ± (0.5%H+0.04mm); H is thickness value

Measurement cycle: Single point measurement 6 times/per

Display: 128 x 64 LCD with LED backlight

Storage: 3000 values of saved data

Communication Interface: USB

Power Source: 2pcs 1.5V AA battery

Working Time: more than 50 hours (LED backlight off)

Work environment Temperature: -20℃ to 70℃

Humidity: 5% to 90% (≤90％)

Storage Temperature: -30℃ to ＋70℃

Dimensions & N/W: 145mmx74mmx32 mm; 245g
