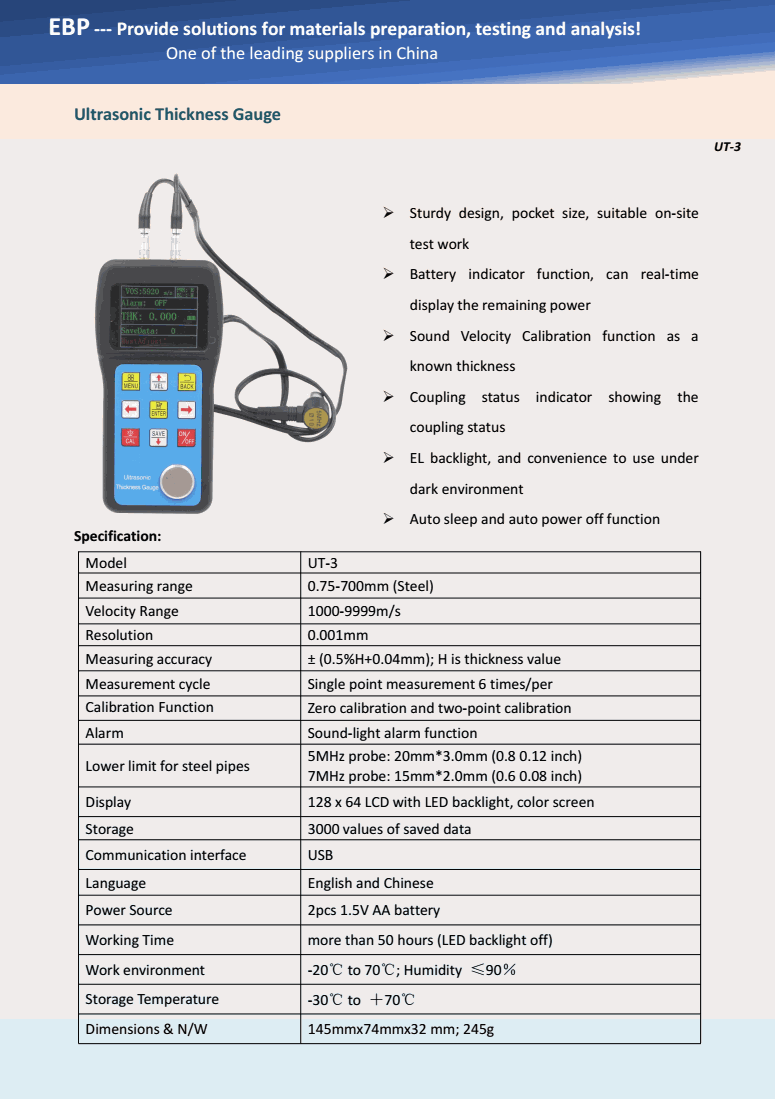

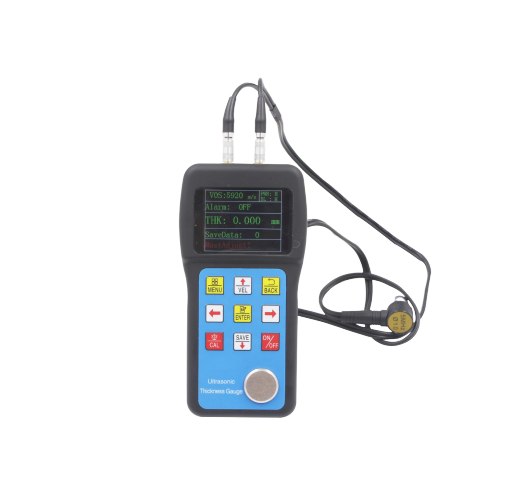

EBP UT-3 Ultrasonic Thickness Gauge (0.75-700mm)

Measuring range: 0.75-700mm (Steel)

Velocity Range: 1000-9999m/s

Resolution: 0.001mm

Measuring accuracy: ± (0.5%H+0.04mm); H is thickness value

Measurement cycle: Single point measurement 6 times/per

Calibration Function: Zero calibration and two-point calibration

Alarm: Sound-light alarm function

Lower limit for steel pipes:

5MHz probe: 20mm*3.0mm (0.8 0.12 inch)

7MHz probe: 15mm*2.0mm (0.6 0.08 inch)

Display: 128 x 64 LCD with LED backlight, color screen

Storage: 3000 values of saved data

Communication Interface: USB

Language: English and Chinese

Power Source: 2pcs 1.5V AA battery

Working Time: more than 50 hours (LED backlight off)

Work environment Temperature: -20℃ to 70℃

Humidity: 5% to 90% (≤90％)

Storage Temperature: -30℃ to ＋70℃

Dimensions & N/W: 145mmx74mmx32 mm; 245g
