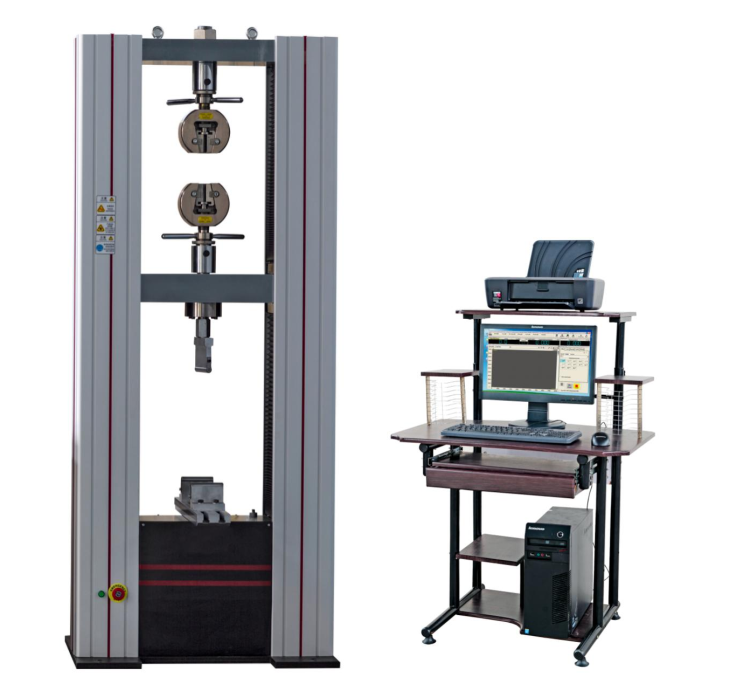

EBP UTM-10EW Computer Controlled Electronic Tensile Testing Machine (10kN (1000kgf))

Max Load: 10kN (1000kgf)

Load Accuracy: Class 1 (optional: Class 0.5)

Testing Range: 2%～ 100%F.S (optional: 0.4%～ 100%F.S)

Load Resolution: 1/500000FS

Test Control Mode: 3 closed loop control, stress, strain and displacement

Deformation Measuring Range: 0.2%～ 100%FS

Deformation Accuracy: ≤±0.5%

Displacement Accuracy: ≤±0.5%

Displacement Resolution: 0.04μm

Control System Parameters

Control Mode: Force closed loop control, deformation closed loop control, displacement closed loop control

Force Control Controls The Speed Range: 0.001%~5%FS/s

Constant Force Control Accuracy: When the rate is < 0.05%FS/s, it is within ±2% of the set value; when the rate is ≥0.05%FS/s, it is within ±0.5% of the set value;

Deformation Control  Controls Speed Range: 0.001%~5%FS/s

Constant Deformation Control Accuracy: When the rate is < 0.05%FS/s, it is within ±2% of the set value; when the rate is ≥0.05%FS/s, it is within ±0.5% of the set value;

Main Frame Parameters

Max. Tensile Testing Space: 789mm

Max. Compression Testing Space: 789mm

Test Width: 315mm

Crosshead Speed Range: 0.001～ 500mm/min

Overall Dimensions (L*W*H): 663*430*1700mm

Power Supply: 1P 220V±10%,50-60HZ,500W

N.W.: About 180kg

Operating Temperature: 0 to +38°C (+32 to +100°F)

Humidity Range: 10% to 90% non-condensing
