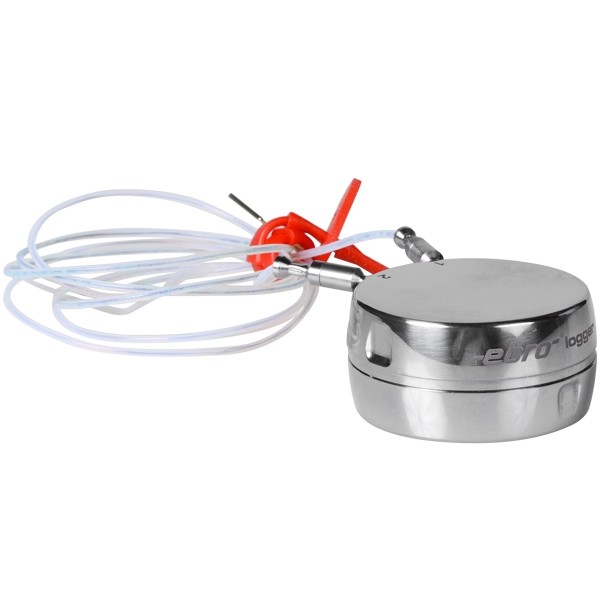

Manufacturer: EBRO
Model: EBI 12-T490
Part No.: 1340-6634
Origin: Germany
Warranty: 12 months
Product Description
Application sample Steam sterilizer; Process monitoring, F-value and A0 value calculation.
• with wire probe
• according ISO EN 17665, EN 285, pr DIN
58929 / DIN EN 13060 und ISO 15883
• Needle length 600 mm, ø 1,2 mm
Measuring range: -20 °C … +150 °C
Accuracy: ± 0,2 °C (-20 °C … 0 °C) ± 0,1 °C (0 °C ... +120 °C) ± 0,05 °C (+120 °C … +140 °C) ± 0,1 °C (+140 °C … +150 °C)
Resolution: 0,01 °C
Operating Temperature: -20 °C … +150 °C
Storage temperature: 0 °C ... +125 °C
Memory: 2 x 50,000 measurement values
Sensor: Pt 1000, class A
Sample Rate: 250 msec ... 24 h
Probe: 4 external temperature sensors, radial, flexible
Measured variables: Temperature
IP Rating: IP68
Battery: Lithium battery (3,6 V), user replaceable
Dimensions: (Ø x H) 48 mm x 24 mm
Weight: approx. 110g
Certificate: Factory calibration certificate
Options
- Interface Set SI 2100 2-fold Interface IF 100 for EBI 12, EBI 10, EBI 100 and EBI 11; Part No. 1340-6064
- Interface Set SI 1200: 4-fold Interface IF 200 for EBI 12, EBI 10 and EBI 100; Part No. 1340-6062
- AL 104: SET pin cho EBI12 + EBI 16; Part No. 1100-0118
- AL 121 dụng cụ mở; Part No. 1100-0131
- AL 285 Logger Check; Part No. 1248-0285
- Interface Set SI 1100: 2-fold Interface IF 100 for EBI 12, EBI 10, EBI 100 and EBI 11; Part No. 1340-6061
- Interface Set SI 3200 4 fold Interface IF 200 for EBI 12, EBI 10 and EBI 100; Part No. 1340-6068
Software
Winlog.validation Software; Part No. 1340-2394
