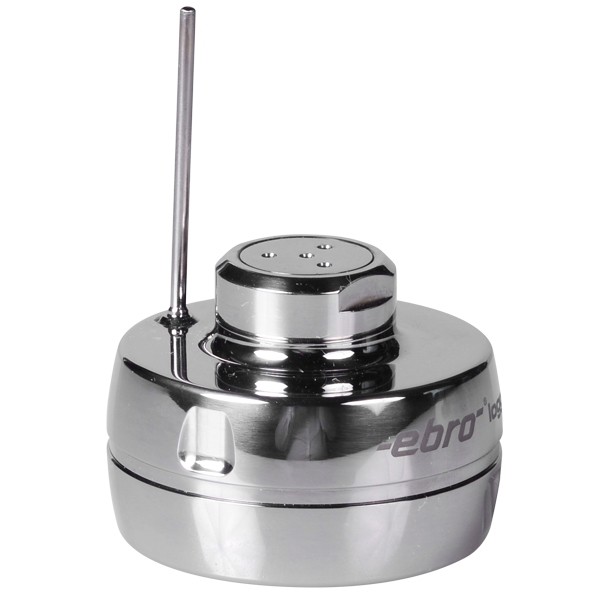

Manufacturer: EBRO
Model: EBI 12-TP190
Part No.: 1340-6665
Origin: Germany
Warranty: 12 months
Product Description
In the process of H2O2 Sterilizers a very precise pressure measurement is necessary. The system works with pressures down to 1 mbar abs. A Highly accurate pressure data logger is necessary caused by the very low pressure nearly by vacuum.
Measuring range:Pressure: 0,1 mbar ... 1050 mbar Temperature: 0°C ... +85°C
Accuracy:Pressure: 0.25 mbar (0.1 to 50 mbar) ±5 % of measured value (50 to 100mbar) 1 % FS (100 to 1050 mbar) Temperature: ±0.1 °C (0 °C to +85 °C)
Resolution:Pressure: 0,1 mbar ; Temperature: 0,01°C
Operating Temperature:0°C ... +85°C
Memory:50.000 measurement values
Sensor:Pt 1000, piezoresistive pressure sensor
Sample Rate:250 ms...24 h.
Measured variables:Pressure, Temperature
IP Rating:IP68
Battery:Lithium cell, 3.6 V, user replaceable
Dimensions:ø 48 mm x 35 mm
Weight:Aprox. 120 g
Certificate:Factory calibration certificate
Options
- AL 121 dụng cụ mở; Part No. 1100-0131
