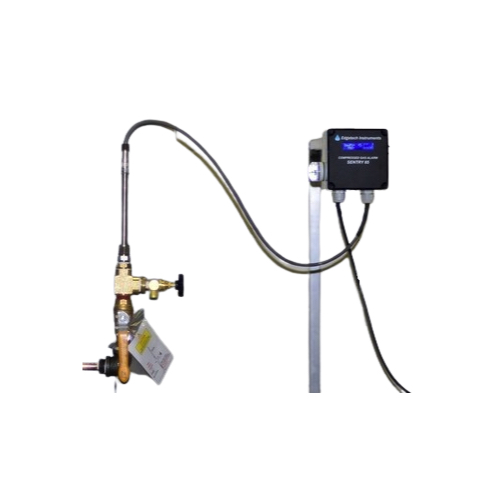

Provides strobe lamp and 85 dB pulsing audible alarm when high dew/frost point or low pressure condition is detected
Measuring Range (HPP125 Sensor Probe):
Standard Dew/Frost Point: -40°C to +95°C (-40°F to 203°F)
Low Dew/Frost Point: -60°C to +95°C (-76°F to 203°F)
Pressure: Up to 400 psia (0 to 27.6 bar)
Accuracy:
Dew/Frost Point: ±1°C for -10°C to 95°C, ±2°C for -60°C to -10°C
Pressure: ±1 mbar from 600 to 1200 mbar at 25°C, ±5 mbar over -40°C to +125°C
General:
Enclosure: IP65 water-resistant/dust-tight
Dimensions: 127 mm (H) × 127 mm (W) × 102 mm (D) (5 in × 5 in × 4 in)
Weight: 1.4 kg (3 lb.)
Display: 2-line LCD with LED backlight (pressure and dew/frost point)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Smart Sensor Probe: 1-meter cable with quick connect to control module
Sample Connection: 1/2” Male NPT (optional: 3/4” or 1” Male NPT)
Sample Pressure: Up to 400 psia (27.6 bar)
Power & Outputs:
Power Supply: 90-230 Vac ±10%, 50-400 Hz, 3-meter power cord included
Analog Outputs: Two 4-20 mA outputs:
Pressure of compressed air at sensor probe (psia)
Dew/frost point at 1 atmosphere pressure
Alarm Relay: 1 Form C, 3 A at 250 Vac
Alarm mode: Low pressure or high dew/frost point
