Applications:
Soil sampling above and below groundwater table
Environmental soil research
Undisturbed sampling
Root zone sampling
Samples are suitable for:
Soil fertility determinations
Assessment of soil structure
Volume weight determinations
Determination of granular composition
Soil technical measurements
Field education
Specifications
Connection: Bayonet
Maximum sample depth: 7 m
Product material: Stainless steel, iron, other material
Sample diameter: 37 mm
Sample length: 20 cm
Sample specification: Undisturbed
Sample stored in: Foil
Package size: 117 x 27 x 23 cm
Weight: 27.54 kg
Set contains:
Hand auger for pre- and clean drilling of the bore hole

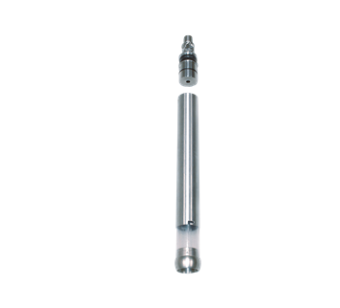

Core sampler with sampler tubes
Sample foils
Soil sample containers
Maintenance equipment
Aluminium transport case
Description:
There are two sets of liner samplers available. This is the liner sampler set for soft soils, due to its bayonet connection. We also have a set available for harder soils.
The sample, while still in the liner, can be stored in a container which can be sealed for transport to the laboratory. By using liners in the sampler, it is easy to remove the sample which is almost undisturbed. This set is packed in an aluminium transport case.
In case of an undisturbed sample it is often difficult to remove the sample from the sampler tube. This type of corer uses a sample liner tube inside the sample tube; this facilitates easy removal of the sample from the tube. The samples can also be viewed directly in the field, without having to touch them. Please note that the liner will absorb volatiles.
Features:
Liner allows easy removal of sample
Soil fertility and volume weight determinations
Assessment of (soft) soil structure
Determination of granular composition
Soil technical measurements
