Eijkelkamp 08.05 Granular composition test set (0.063 micron - 8 mm)

Applications

Geotechnical soil research

Soil physical laboratory research

Erosion research

Irrigation research

Soil stability research

Water or air permeability research in the lab

The granular composition test set is used to analyse coarse fractions of soil samples. To perform a complete analysis or the grain-size of soil samples, the hydrometer set, for smaller fractions, is needed as well.

Specifications

Measuring range: 0.063 micron - 8 mm

Sample specification: disturbed

Sieves diameter: 200 mm

Sieves height: 50 mm

Sieve openings: 0.063 mm, 0.090 mm, 0.125 mm, 0.180 mm, 0.250 mm, 0.355 mm, 0.500 mm, 0.710 mm, 1.0 mm, 2.0 mm, 4.00 mm, 8 mm

Power supply: line voltage

Voltage: 240V 50Hz

Package size: 65 x 65 x 70 cm

Weight: 59 kg

Description

Analysis of course soil fractions

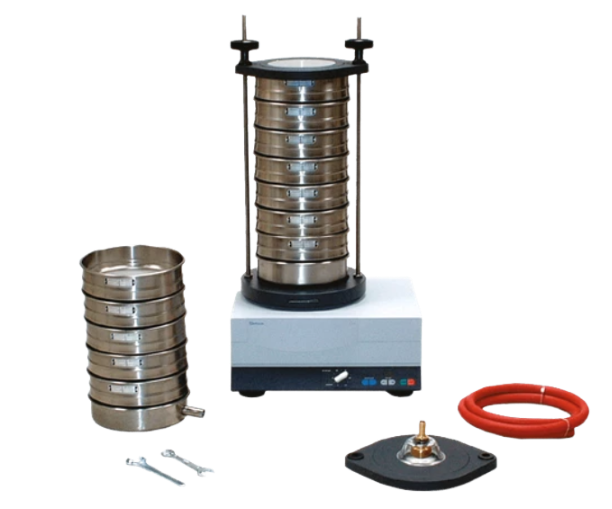

Particle size distribution determination with our granular composition test set helps to classify the soils on the basis of international standards. The set contains:

Electromagnetic sieve shaker that can hold up to 8 sieves

Set of stainless-steel wire mesh sieves of 200 mm diameter, with different apertures

The electromagnetic sieve shaker keeps the sample in continuous motion, for the best possible sieving results and accurate determination of the granular composition. The sieve shaker and the stainless steel mesh sieves (including receivers and lids) are suitable for both wet and dry sieving.
