Open system, 25 ring holders for Ø 53 and 66 mm
Maximum measuring depth: 0 m
Maximum number of samples: 5 to 25
Power supply: line voltage
Reading accuracy: 1 ml
Registration type: manual
Sample specification: Undisturbed
Sample stored in: Ring
Voltage: 230 volt
Package size: 85 x 63 x 115 cm
Weight: 30 kg
Application:
The soil water permeameter can be used to measure the saturated permeability of undisturbed soil samples in sample rings. The permeability factor gives accurate information about:
+ The presence of disturbing soil layers that prevent outflow of precipitation
+ The correlation between permeability and other soil properties such as porosity, granular composition, etc.
+ The vertical and horizontal permeability
This data can help draw further conclusions about
+ Irrigation and drainage systems
+ Well pumping
+ Subsidence phenomena
+ Predictions concerning the spread of polluting fluids resulting from calamities
+ Soil improvement- and maintenance advice
Description:
Permeability, or K-factor, refers to the capacity of the soil to drain off water. It is determined on one hand by the geometry of the complex of pores, depending on the texture and structure of the soil, and on the other hand on the intrinsic features of the soil solution (viscosity and density).
Features:

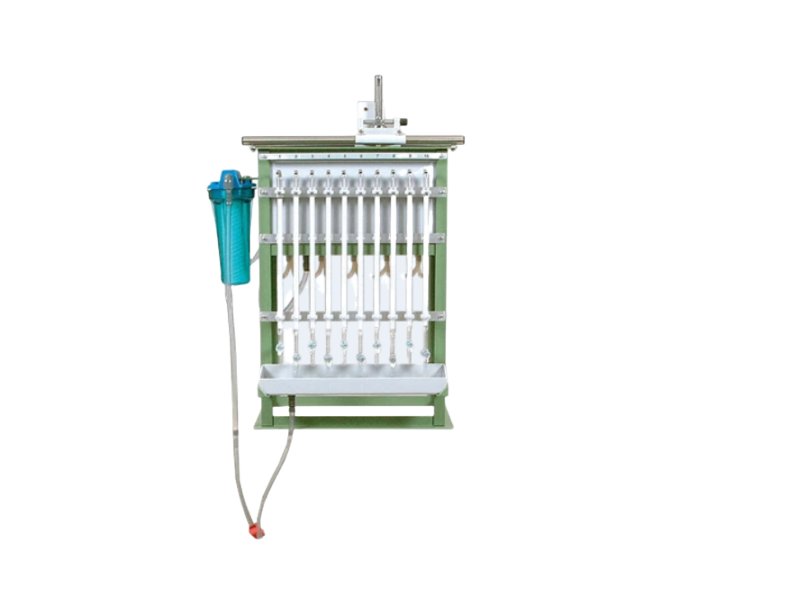

The permeameter is a laboratory tool to measure the saturated permeability, or K-factor, of soil samples. It's available in several variations: with an open or closed system, suitable for 5, 10 or 25 samples, and for use with soil sample rings with an external diameter of 53 or 60 mm.
+ Determines permeability directly on samples
+ Take samples in the field, analyse in the lab
+ Types for large and small scale analyses
+ Modernized electric measuring bridge
+ Low in maintenance
+ Closed system re-uses water over and over
Open vs. closed system
The permeameter is available as an open system, or a closed system with a water pump. The advantages of a closed permeameter compared to an open system are:
+ Location independence, as no drainage is needed
+ Constant water temperature, equal to the temperature in the laboratory, which guarantees constant viscosity
+ Always the same water quality
+ Saves water
