Fit for silt loaden water: Yes
Maximum pumping capacity: 8l/min
Maximum sample depth: 14 m
Power supply: Battery
Sample diameter: 40 mm
Package size: 40 x 40 x 25 cm
Weight: 11 kg
Applications
Monitoring well installation; can be used in small monitoring wells of 40 millimetres
Water quality research
Monitoring water quality
Anaerobe sampling
Water sampling
Ground water sampling
Description
This low-cost submersible pump set, which includes ‘Gigant’ and ‘booster’ pumps, is suitable for use in monitoring wells. Both Gigant and booster pumps are small centrifugal pumps with small but powerful motors. This allows them to fit in narrow monitoring wells of 40 millimetres. The Gigant type (12.12.06) is fitted with a bottom filter. The Booster type (12.12.08) is suitable for in-line installation between 10 x 12 or 12 x 16 millimetre tubing. The Gigant pump can push water to a height of 10 metres. The booster pumps have the same capacity and can be applied as boosters. By fitting one or more booster pumps directly over a Gigant pump the pressure can be raised to 20, 30 or more metres. The pumps can be used for purging a new sampling filter. Connecting the pumps to the regulator of the peristaltic pump 12 VDC allows for setting a relaxed speed. This allows the pumps to be used also for taking samples, as the regulator can power a maximum of two pumps with a maximum sampling depth of approximately 12 metres. The low price of the pumps makes it possible to use them only once. This prevents the risk of cross-contamination. The pumps are made from non-toxic ABS plastic and are fitted with a stainless steel impeller.

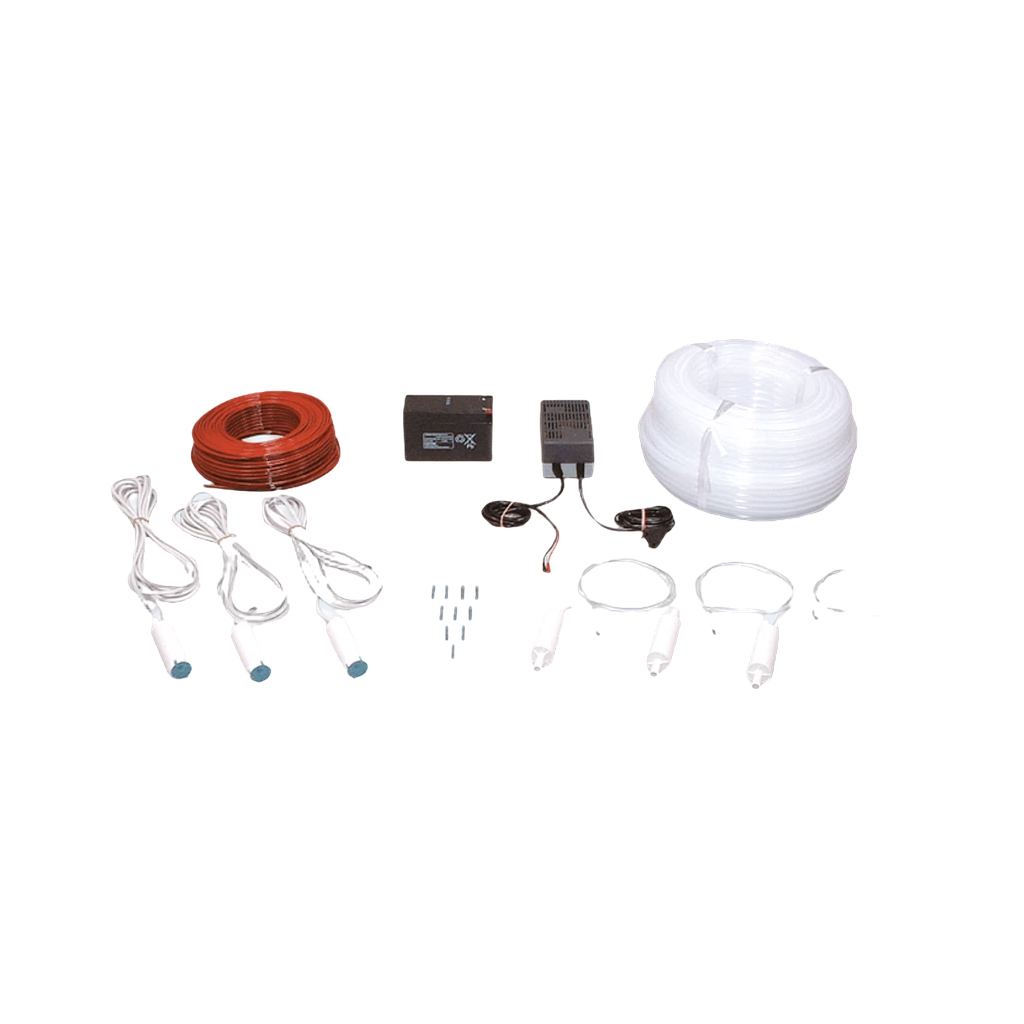

Set contains
Submersible pumps Gigant (3 pumps)
Booster pumps (3 pumps)
Roll of extension cable
Sealed crimp splices (to make a waterproof cable extension)
Roll of polyethylene sampling tube
Battery with battery charger
Manual
