Eijkelkamp 12.41 Liquid layer sampler - cable operated, standard (5 - 25 m)

Applications

Water quality research

Monitoring water quality

Sewage water research

Liquid layer sampling

Sludge sampling

Sediment sampling

Water sampling

Specifications

Size (L,W,H): 3.6 - 3.6 - 90 cm

Maximum sample depth: 5 - 25 m

Point or profile: Profile sampling

Power supply: Manual

Rod or Cable length: 25 m

Rod or cable operated: Cable

Sample specification: Undisturbed

Sample stored in: Tube

Sample volume: 750 ml

Sampler position: Vertical

Package size: 150 x 18 x 17 cm

Weight: 7.3 kg

Description

This translucent PTFE (polytetrafluoroethylene) and stainless steel sampler is especially suitable for sampling and accurately making  the layers visible in deeper containers, basins, and monitoring wells with a diameter exceeding 38 millimetres. The sample can be transported without disturbance in the transport tube.

After sampling, the thickness of the sludge- and floating layers can be measured, as, in the translucent tube, these are visible in the original position and thickness. The PTFE tube can be cleaned easily and effectively.

Please note that the cable-operated liquid layer sampler can not be used in thick, viscous fluids.

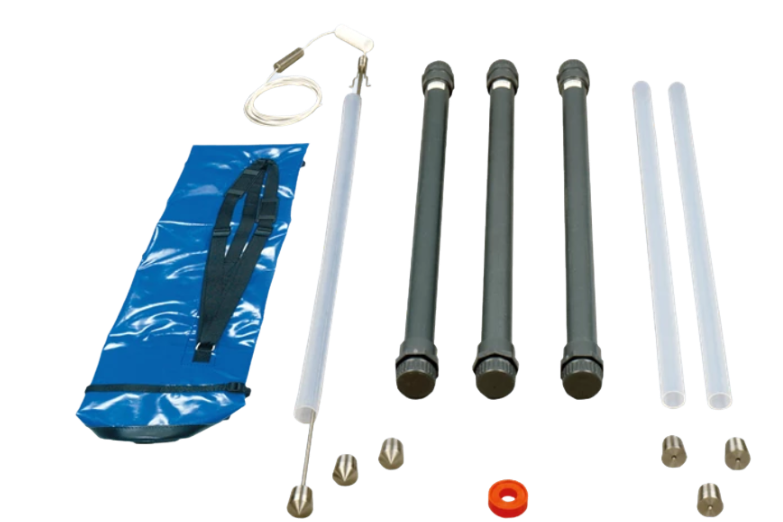

Set contains

PTFE sample tubes

Operating rod with clip

Drop weight

PTFE control cable

Top- and bottom stops

Transport tubes

Sturdy carrying bag

Manual
