Applications
Environmental soil research
Undisturbed sampling
Sewage water research
Anaerobe sampling
Liquid layer sampling
Sludge sampling
Sediment sampling
Specifications
Connection: Bayonet
Sampling diameter: 40 mm, if ball valve 20 mm
Maximum sample depth: 5 m
Product material: Stainless steel
Sampler position: Vertical
Sample length: 1 m
Sample specification: Undisturbed
Sample stored in: Tube acrylic transparant
Tube diameter: ø 50 x 5 mm
Sample volume: 1.14 l
Package size: 150 x 22 x 25 cm
Weight: 15.5 kg
Description
With the Multisampler you can quickly and easily take undisturbed sediment samples in both wet, solid and fluid material. This standard set is rod-operated and suitable for application in water up to a depth of 5 metres. It is possible to sample at an accurate depth (without mixing with higher layers). Accurate mix sampling can be done during a procedure.
Method
The samples are taken in a transparent tube, which allows you to immediately visually check the sample and make a clear profile description. The device is pushed into the sludge. To prevent compaction of the layers, a piston is kept in a stationary position in relation to the sludge. The piston can be operated directly with a rod, so that the sample can be pushed from the sampler into the sampling trough on site. The sampling tube can be quickly disinfected or changed, making it even easier to take samples. This set is supplied in a carrying bag with shoulder strap. Please note that the Multisampler is not suitable for hammering.

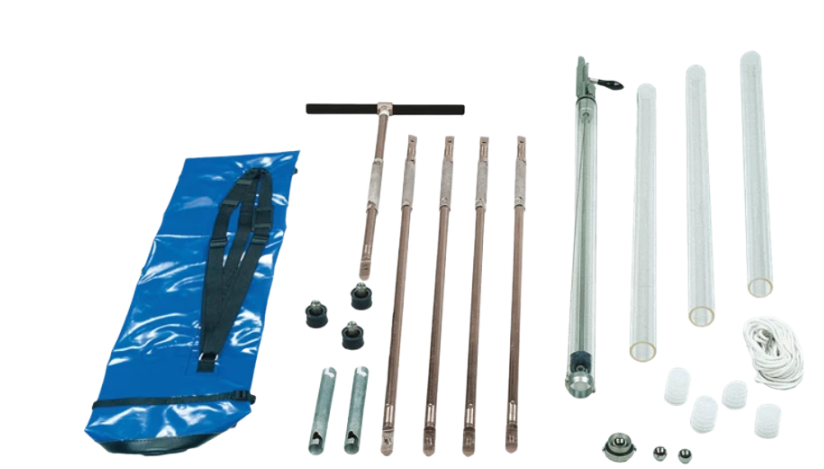

Set contains
Multisampler
Two cutting heads (one for fluid- and one for solid material)
Sampling tubes
Pistons
Extension rods
Top-piece
Various accessories
Carrying bag with shoulder strap
Manual
