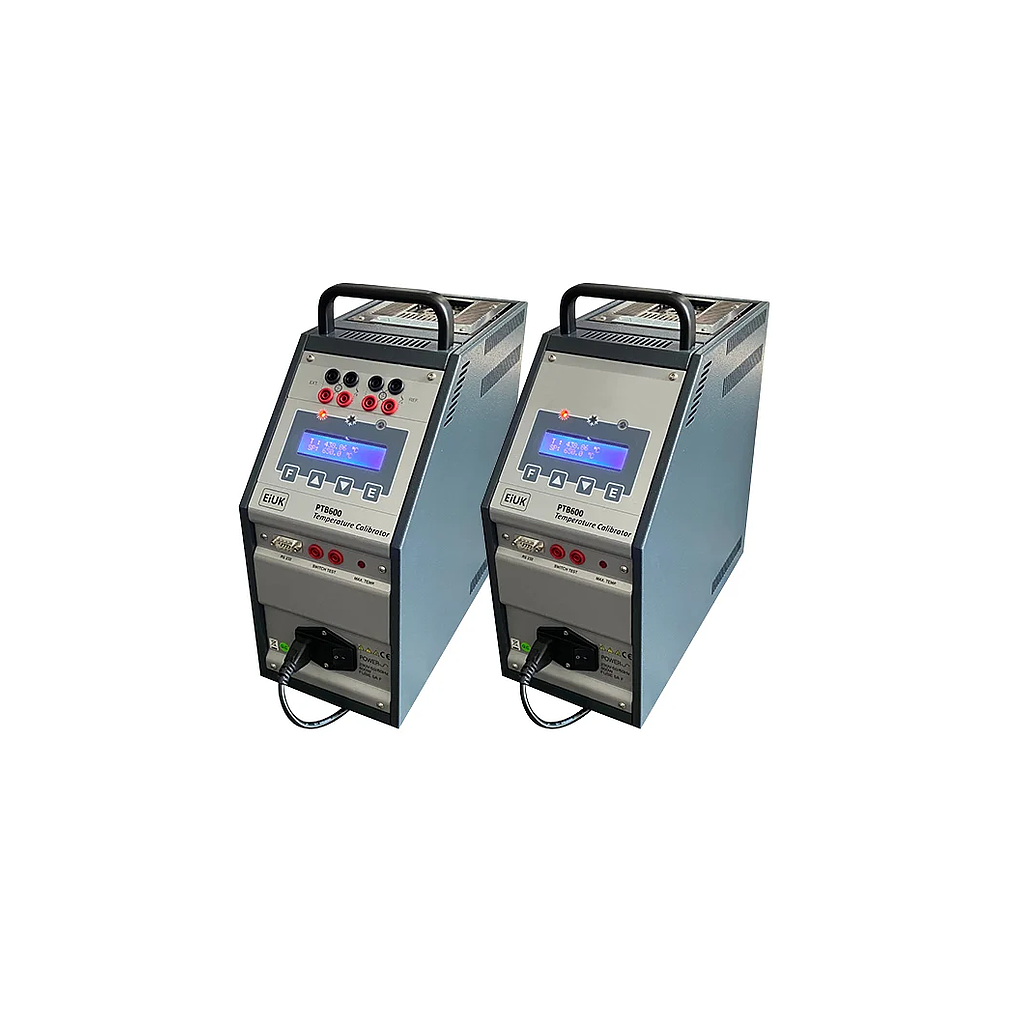

EiUK PTB600-TC Temperature Calibrator (10°C ~ 650°C)

Temperature Range

Ambient Temperature @ 23ºC: 33°C to 650 °C

Ambient Temperature @ 0ºC: 10°C to 650°C

Stability ( measured over 30 mins): ± 0.05 °C

Uniformity

Axial (lower 40 mm) : ± 0.35 °C

Radial: ± 0.15 °C

Accuracy

with Internal Reference Sensor: ± 0.30 °C

with External Reference Sensor SRS (*): ± 0.15°C   ( TC version only)

Display  Settings

Set Point Range: -0°C to 650 °C

Resolution: user-selectable 0.1 , 0.01 C

Units: user-selectable C, F,K

Calibration Volume

Immersion depth: 185 mm

Insert Diameter: 35 mm

Standard Insert Supplied: Ø3.5-5-6.5-8.5-12.5 mm pockets

Heating time: 33 to 650 ºC : 36 min

Cooling Time:

650 to 100 ºC : 39 min

100 to 50ºC : 19 min

50 to 33ºC: 21 min

Thermocouple Input (TC version)

Type: K,N,R,S,J,E

Range: 0 to 1700 °C

Accuracy: ± 1°C Include CJC error

Resolution: user-selectable 0.1 , 0.01 °C

RTD’S input ( TC version only)

Type: Pt 100 (3/4 wires) IEC

Range: -100 C to 700 °C

Accuracy: ± 0.3 °C

Resolution: user-selectable 0.1 , 0.01 °C

General

Computer interface: RS 232 as standard ( UBS adapter supplied as option) and EIUK software included

Switch Test: Yes With automatic log of switch open and switch closed

Ramp: Yes fully programmable

Weight: 10 Kg

Dimensions: 160x340x330 mm

Power Requirement: 115 or 230 V – 50/60 Hz

Power: 800 VA

Notes: * Require SRS sensor and special UKAS matching calibration. Long term drift not included

Scope of Supply: Each PTB600 is supplied with: Power Cable, RS233 cable, switch test lead, standard insert, insert removal tool, traceable calibration certificate and instruction manual
