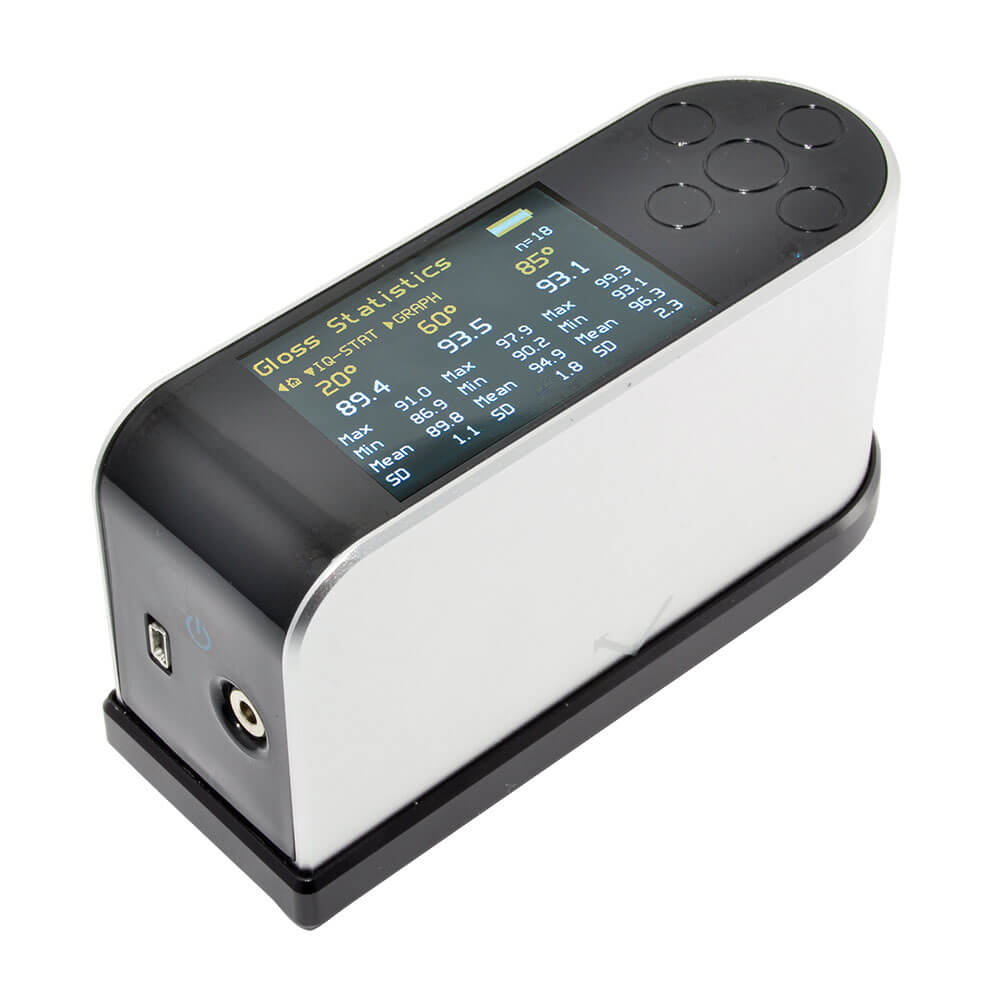

Elcometer J408--268 Triple Angle Gloss and distinctiveness of image (DOI) meter (20/60/85°)

Name: Elcometer J408--268 Triple Angle Gloss and distinctiveness of image (DOI) meter (20/60/85°)
Brand: ELCOMETER

ManufacturerELCOMETER(View more products from this manufacturer)

ModelJ408--268

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Easy to use menu structure: English, Spanish, French, Italian, German, Chinese
Bright colour screen: Adjustable brightness, 6 button touch sensitive interface
On screen statistics: x, σ, maximum & minimum value
Gauge memory; number of readings: up to 999 readings & curves
Repeat measurement mode: user definable: 2, 5 or 10 seconds
Measurement Range (Gloss/Haze/DOI/ RIQ):
+ 20°: 0-2,000GU/0-2,000GU/0-100 DOI/0-100 RIQ
+ 60°: 0-1,000GU/0-2,000GU/0-100 DOI/0-100 RIQ
+ 85°: 0-150GU/0-2,000GU/0-100 DOI/0-100 RIQ
Resolution (Gloss/Haze/DOI/ RIQ/Goniophotometric): 0.1GU/0.1HU/0.1/0.1GU
Repeatability (Gloss/Haze/DOI/ RIQ/Goniophotometric): 0.2GU/0.2HU/0.2/0.2GU
Reproduceability (Gloss/Haze/DOI/ RIQ/Goniophotometric): 0.5GU/0.5HU/0.5/0.5GU
Dimension (H x W x D): 65 x 140 x 50mm
Weight: 790g (1lb 12oz)
Packing List: Elcometer 408 Gloss & DOI Meter, high gloss calibration tile with calibration certificate, gloss tile cleaning cloth, mains charger (UK, EU & US), transit case, USB cable, ElcoMaster® software and operating instructions.

Manual

Datasheet

Elcometer 408 Triple Angle Gloss & DOI Meter

The Elcometer 408 provides the very latest in gloss measurement technology, providing accurate gloss, haze and distinctiveness of image (DOI) analysis in a single reading.

Key features of the Elcometer 408 Gloss Meter include:

Accurate

Fast and simultaneous measurement of gloss, haze, DOI, Rspec, RIQ and Goniophotometric profiles
Each instrument is supplied with a Calibration Certificate

Simple

Bright, easy to read LCD screen displays the gloss value, statistics & graphs
Display measurements are user definable
Each set of readings is time & date stamped

Flexible

Triple (20/60/85°) angle for maximum accuracy and resolution in all gloss applications
Bluetooth^® or USB download to ElcoMaster^® data management software for instant analysis

Durable

Robust aluminium construction ensures optical stability
17hrs+ continuous operation or 20,000+ readings
Compact & portable instrument with integrated tile holder

Efficient

Easy menu-driven user interface in multiple languages
Clear, illuminated display showing up to five parameters on screen
On board trend analysis with gloss and image quality (IQ) values

Powerful

On board memory for 999 readings with full goniophotometric profiles
Internal battery is fully rechargeable in 2.5 hours

Elcometer 408 Triple Angle Gloss & DOI Meter

Technical Specification

Product Features
Easy to use menu structure	English, Spanish, French, Italian, German, Chinese
Bright colour screen; with permanent back light	Adjustable brightness, 6 button touch sensitive interface
User definable measurement display	■
Scratch & solvent resistant display	■
Mains or USB power supply	■
Calibration certificate	■
Data output	■
USB; to PC	■
Bluetooth^®*: to PC or Android™ mobile device^#	■
On screen statistics	x, σ, maximum & minimum value
ElcoMaster^® software & USB cable	■
Date and time stamp	■
Gauge memory; number of readings	up to 999 readings & curves
Repeat measurement mode	user definable: 2, 5 or 10 seconds
Delete last reading	■
Standard & fixed batch sizes	■
Trend, gloss & image graphs	■
Measurement modes	Gloss (GU): 20°, 60°, 85°; Haze (HU) & Haze Log (HU Log); Distinctiveness of Image (DOI); Peak Reflectance (Rspec); Reflected Image Quality (RIQ) & Goniophotometric Profile

Technical Specification
Part Number	Description				Certificate
J408--268	Elcometer 408 Triple Angle Gloss & DOI Meter (20, 60 & 85 Degree)				•
Power Supply	Rechargeable Lithuim Ion gives 17+ hours / 20,000 readings
Recharge Time	USB 4.5 hours, Mains Charger 2.5 hours
	Gloss	Haze	DOI	RIQ	Goniophotometric
Measurement Range	20°: 0-2,000GU; 60°: 0-1,000GU; 85°: 0-150GU	0-2,000GU	0-100 DOI	0-100 RIQ	-
Resolution	0.1GU	0.1HU	0.1		0.1GU
Repeatability	0.2GU	0.2HU	0.2		0.2GU
Reproduceability	0.5GU	0.5HU	0.5		0.5GU
Peak Specular Reflectance	-20° ± 0.09375°
Dimensions (H x W x D)	65 x 140 x 50mm (2.5 x 5.5 x 1.9”)
Weight	790g (1lb 12oz)
Packing List	Elcometer 408 Gloss & DOI Meter, high gloss calibration tile with calibration certificate, gloss tile cleaning cloth, mains charger (UK, EU & US), transit case, USB cable, ElcoMaster^® software and operating instructions.
