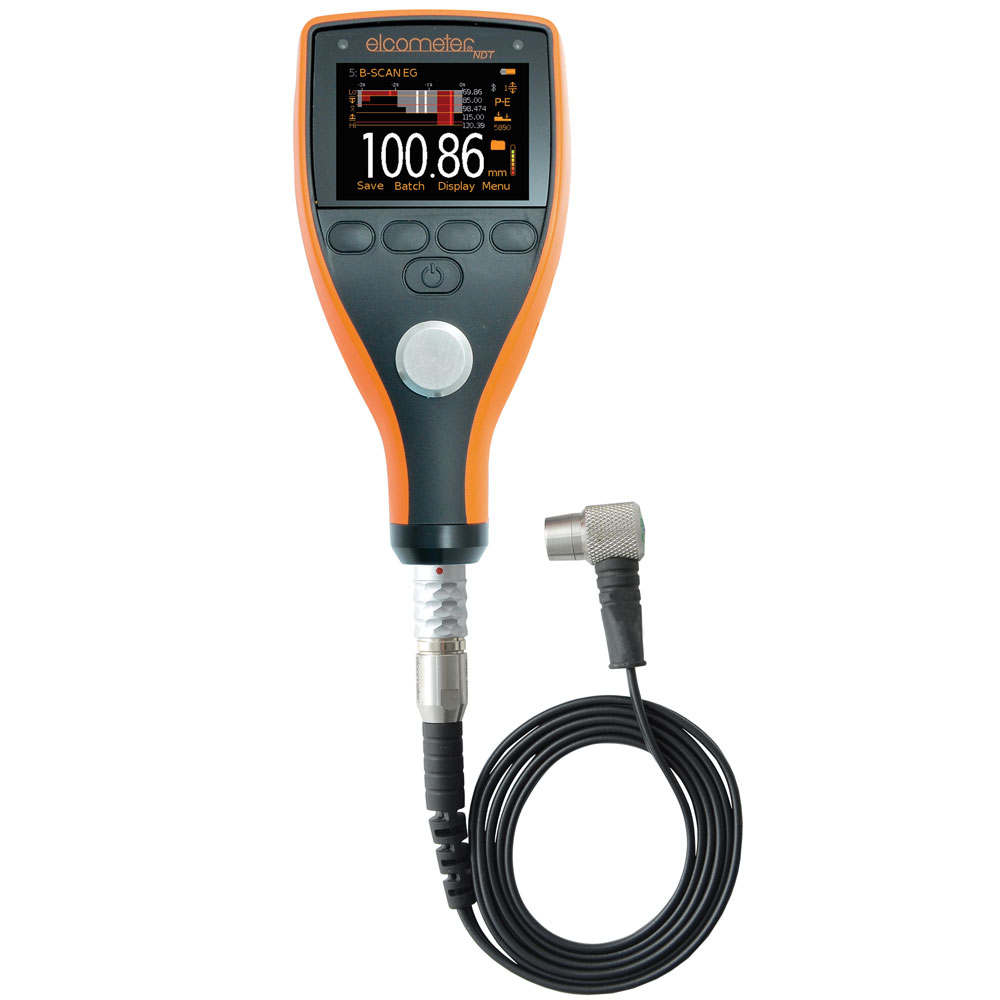

ELCOMETER MTG8 Material Thickness Gauge (Only gauge, 0.63-500mm)

Pulsed-Echo (P-E) measurement Mode

Pre-calibrated for measuring on steel only

Tough, impact, waterproof and dust resistant equivalent to IP54

Measurement Mode: Pulsed Echo (P-E)

Measurement Rate: 4, 8, 16Hz

Thickness Range: P-E: 0.63-500mm, E-E: 2.54 - 25.40mm

Measurement Accuracy: ±1% or ±0.05mm

Measurement Units: mm or inch, m/s, in/µs

Selectable Reading Resolution: Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs; Hi; ie 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs

Data Output: USB, bluetooth to PC

Data logging: yes

Transducer Probe Type: Dual element

Battery Type: 2xAA

Battery Life: Alkaline: 15 hours; Lithium: 28 hours

Operating Temperature: -10 to 50°C

Size (w x h x d): 145x73x37mm

Weight (including batteries): 210 g

Packing List: Elcometer MTG8BDL , couplant, wrist harness, 3 x screen protector, protective case, plastic transit case, 2 x AA batteries, calibration certificate, USB cable, ElcoMaster® Software, operating instructions
