Elcometer W182---4 Analogue Concrete Test Hammer (2.207 Nm, Unit Selection)

Name: Elcometer W182---4 Analogue Concrete Test Hammer (2.207 Nm, Unit Selection)
Brand: ELCOMETER

ManufacturerELCOMETER(View more products from this manufacturer)

ModelW182---4

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Manufacture: Elcometer
Model: W182---4
Origin: England
Warranty: 12 month

Impact Energy: 2.207 Nm
Accuracy : Better than ± 2 Rebound Number(s) (When tested on Calibration Anvil at 80)
Resolution: 0.1 Rebound Number
Range: 10 to 70 MPa
Memory: 5000 tests
Unit Selection: N/mm2; MPa; kg/cm2; PSI
Autonomy (Continous Use): >5 Hours
Dimensions: Hammer: 280mm length x 55mm diameter; In Case: 190 x 100 x 350mm
Weight: 2kg (4.4lbs) with case
Packing List: Hammer 182, battery charger (UK, EUR & US), serial cable for PC, abrasive stone, instruction manual, calibration certificate and carry case

Datasheet

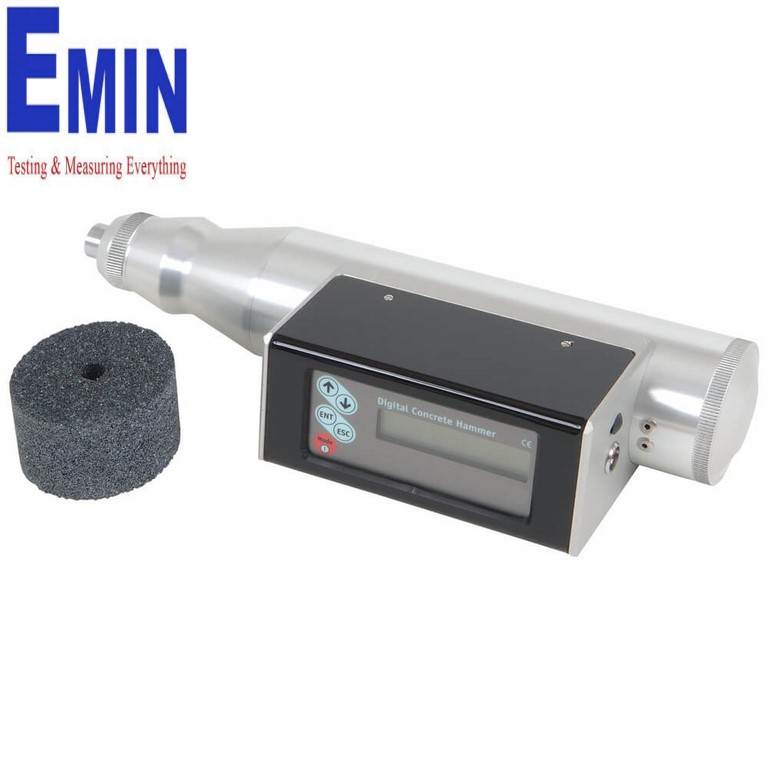

Elcometer 182 Digital Concrete Test Hammer

The Elcometer 182 Digital Concrete Test Hammer is equipped with an electronic transducer which converts the rebound values into a reading on the digital display.

It displays a range of statistics and there is a facility to download to a PC.

The software and digital display are integrated into the design of the hammer.

Light and easy to use
High resolution and accuracy
Possibility to store measurements and download data to PC
Setting of test parameters and factors (age, shape, correction factors)
Rapid and simple calibration procedure
Selection of testing angle
Selection of unit (N/mm2, MPa, PSI, kgf/cm2) Automatic conversion of rebound index to equivalent compression strength
Selection between 7 different correlation curves between rebound index and compressive strength, 2 pre-set and 5 user definable
Statistical evaluation of test results (mean value, standard deviation, concrete strength estimation)
Supplied with abrasive stone to prepare test surface
Storage of up to 5,000 results
RS 232 output to PC
Rechargeable internal battery

Elcometer 182 Digital Concrete Test Hammer

Technical Specification

Part Number	Description	Certificate
W182---4	Elcometer 182 Digital Concrete Test Hammer	•
Impact Energy	2.207 Nm
Accuracy	Better than ± 2 Rebound Number(s) (When tested on Calibration Anvil at 80)
Resolution	0.1 Rebound Number
Range	10 to 70 MPa
Memory	5000 tests
Unit Selection	N/mm2; MPa; kg/cm2; PSI
Autonomy (Continous Use)	>5 Hours
Dimensions	Hammer: 280mm (11.02") length x 55mm (2.17") diameter In Case: 190 x 100 x 350mm (7.48" x 3.94" x 13.78")
Weight	2kg (4.4lbs) with case
Packing List	Hammer, battery charger (UK, EUR & US), serial cable for PC, abrasive stone, instruction manual, calibration certificate and carry case
