EMIN ATBOX-G4 IPC

- CPU: Intel Core i5-8250U.

- Memory: RAM 8GB.

- Storage: SSD 512GB.

- OS: Windows 10/Linux.

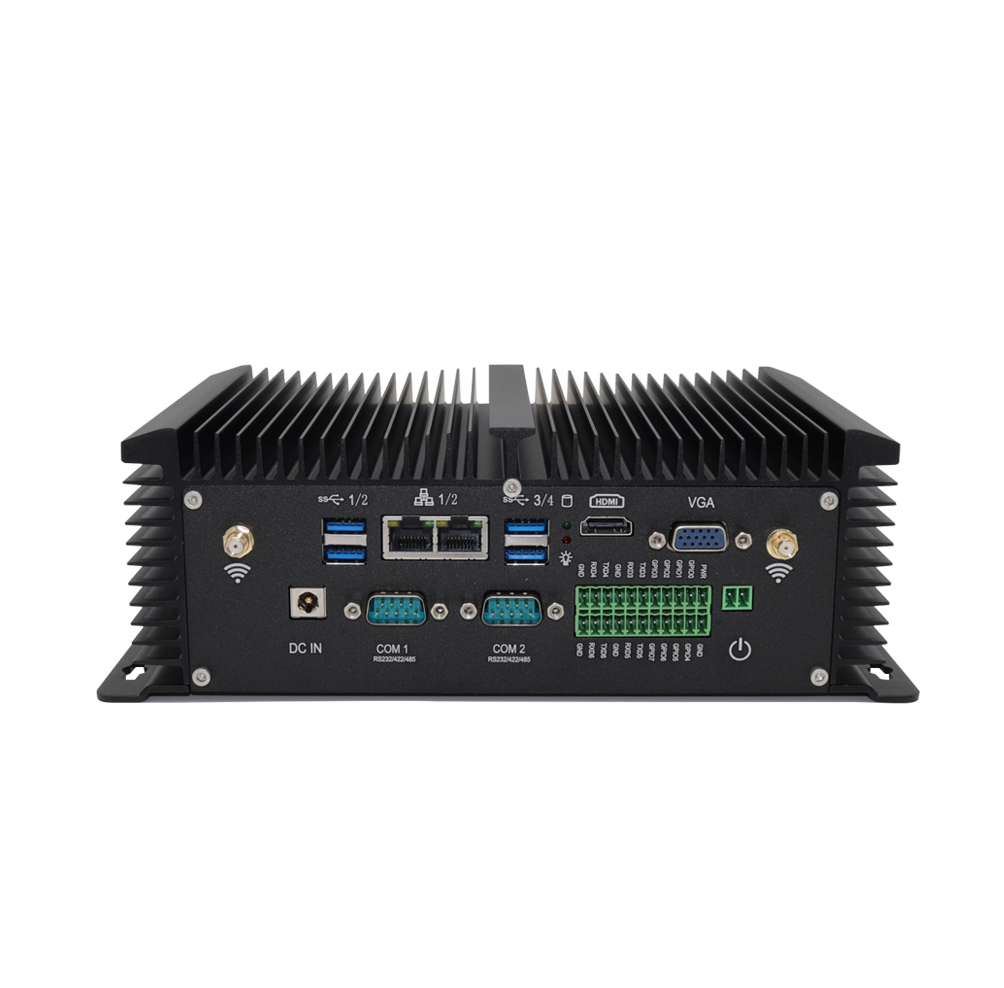

I/O port:

- Display Port: 1* HDMI, 1* VGA.

- USB port: 4* USB 3.0.

- COM port: 2* COM ports, can change to RS232/422/485 from BIOS .

- SATA port 1* M-SATA3.0 port, support 6Gb/s; 1* SATA3.0 port, support 6Gb/s.

- 1* mini PCIE-half port for WiFi module; 1* mini PCIE-full port for 3G/4G module.

- 1* GPIO, 1* 2Pin Phoenix terminal power supply input

- Ethernet: 2* RJ45 LAN 10/100/1000 Mbps Adaptive.

Power & Working Envviroment:

- Input: DC100-240V AC/50-60Hz.

- Output: DC 12V/5A.

- Consumption: 15W

- Dimension: 150*83*224mm.

- Operating temperature: 0°C ~ 60°C.

- Storage temperature: -20°C ~ 80°C.

- Relative humidity: 20% ~ 85% (non-condensing).

SUPPORT WIFI, 3G, 4G.
