Environmental M5-S3-MV Master (Isokinetic, 7 foot, manual)

Qty. Part # Description

(1) C-5000-SO Console with Stainless Steel QC and Built In Orsat Capability
(1) M5-CTC Transport Case for Method 5 Console
(1) CO-QC8-SS-SET Stainless Steel Critical Orifice set
(1) M5-HB Heated Filter Box ,115V/700W
(2) M5-CB06 6 Impinger Cold Box
(1) PRA-S03 3 Foot Effective Length Probe Assembly with Stainless Liner
(1) PRA-S05 5 Foot Effective Length Probe Assembly with Stainless Liner
(1) PRA-S07 7 Foot Effective Length Probe Assembly with Stainless Liner
(2) PRL-P03 Pyrex Probe Liner, 3 Foot Effective Length, #28 Ball With O-Ring
(2) PRL-P05 Pyrex Probe Liner, 5 Foot Effective Length, #28 Ball With O-Ring
(2) PRL-P07 Pyrex Probe Liner, 7 Foot Effective Length, #28 Ball With O-Ring
(1) P0523-HS-SS Pump in Closed Housing with Stainless Steel Quick Connects
(1) M5-PTC Transport Case for Method 5 Console
(1) UC-025 Umbilical Cable, 25'
(1) UC-050 Umbilical Cable, 50'
(1) M5-UA Umbilical Adapter with Check Valve
(1) PRNS-S Stainless Steel Nozzle Set, 7 sizes 1/8" - 1/2"
(1) GPBO-3C Professional Glassware Set with Transport Case
(1) GF3-107 Glass Fiber Filters, Box of 100
(1) M5-CK Method 5 Cleanup & Recovery Kit
(4) M5-CK05 Probe Brush Extension Rod, (18")
(1) M5-PC-Ti83 Ti83 Calculator with Isokinetic Calculations Programs
(2) M5-SRS-07 Suspension Rail System, 7 Foot
(1) PA-PMB Port Mounting Bracket with Slotted Channel

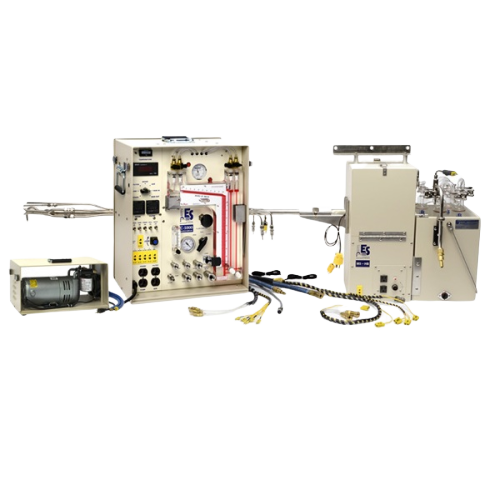

M5-S3 (Master)

The M5-S3 Method 5 Master Isokinetic sampling system provides additional Probe Assemblies, a longer Umbilical Cable, additional liners of various lengths, and Orsat capabilities, built in to the console. This system utilizes Stainless Steel quick connects and calibration orifices. Along with additional equipment the Master System includes a cleanup kit and transport cases for the console, pump, and glassware

Features

Sampling Console with Orsat Capabilities Built-in

Enclosed Housing Pump with Stainless Steel Quick Connects

Transport Cases for Console and Pump

Stainless Steel Calibration Orifice Set for Console Calibration

Sample Cases, including Hot Box and Impinger Box

Stainless Steel Lined Heated Probe Assembly

Pyrex Probe Liners

Stainless Steel Nozzles

Umbilical with an Adapter

Double Set of Method 5 Glassware in a Transport Case

Clean Out Brush and Cleanup Kit

Calculator with Custom Software

Suspension Rail System
